WISER-SQ-ST
Economical, helical lines

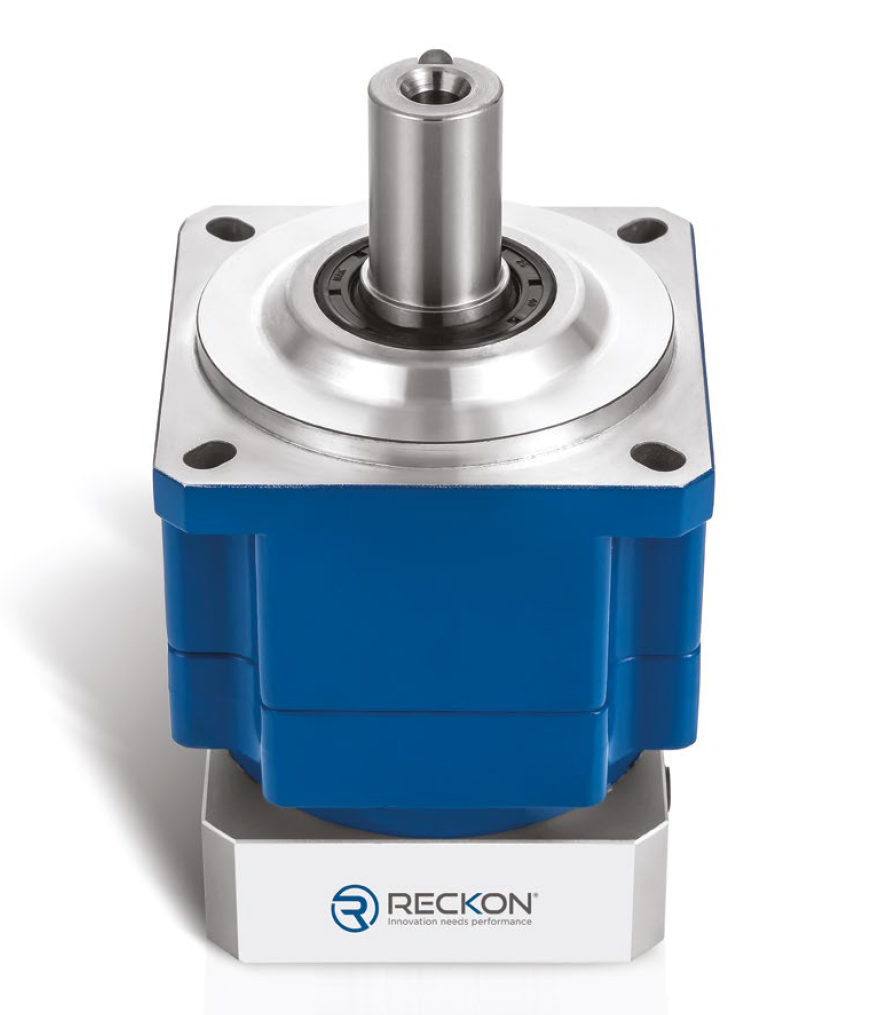

Wiser SQ is an entry-level, yet highly reliable, helical planetary gearbox. This highly economical gearhead is aimed at delivering torque in quiet applications requiring precision.
- Acceleration
- Fast reversals
- Radial load
- Max axial load
- Stiffness
- Precision
- Price range
- Motor connection
- Servo-motor flange, coupling and bushing
- Number of sizes in the line
- 3
Wiser SQ is an economical, helical planetary gearbox.
The planet carrier is a "cage" (monobloc part holding the gears from both sides), providing stiffness and acceleration capacity to the gearbox.
The planet carrier is monobloc with the output shaft too.
This cage is centered into the inner planetary ring by means of 2 radial ball-bearings. This construction reinforces the acceleration capacity because the tilt of the shaft is limited, and the gearbox is able to accept significant torque variations.
The motor shaft connection is a balanced coupling, so the efforts on your motor bearings are minimal.
Installation is fast and easy thanks to a 1-screw lock to your motor shaft.
The gearbox will be delivered with the adapting flange corresponding to your motor.
Ratios over 100:1 are possible, do not hesitate to contact us
Size :060 - Stage(s) : 1
TECHNICAL DATA
| Ratio | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 |
|---|---|---|---|---|---|---|---|---|
| Nominal torque (Nm) | 18 | 37 | 29 | 27 | 24 | 18 | 16 | 14 |
| Peak torque Tmax (Nm) | 55 | 49 | 40 | 38 | 37 | 36 | ||
| Emergency stop torque (Nm) | 1,5 x Tmax | |||||||
| Max angular backlash (arc-min) | Standard : ≤5；Option : ≤3 | |||||||
| Nominal input speed (rpm) | 4000 | |||||||
| Max input speed (rpm) | 7500 | |||||||
| Max radial load (N) | 1100 | |||||||
| Max axial load (N) | 900 | |||||||
| Efficiency (%) | ≥97 | |||||||
| Torsional stiffness (Nm/min) | 6 | |||||||
| Lifespan (h) | 20000 | |||||||
| Min / max ambiant temperature (°C) | -15 / +45 | |||||||
| Max temperature of the body (°C) | 90 | |||||||
| Protection class | IP 65 | |||||||
| Noise level (dB) | ≤61 | |||||||
| Lubrication | Lifetime lubrication (grease) | |||||||
| Coating color | Capri blue (RAL 5019) | |||||||
| Input flange | Anodized aluminum | |||||||
| Weight | - | |||||||
Size :060 - Stage(s) : 2
TECHNICAL DATA
| Ratio | 12R | 12P | 15R | 15P | 16R | 16P | 20R | 20P | 21R | 21P | 25R | 25P | 28R | 28P | 30R | 30P | 35R | 35P | 40R | 40P | 42R | 42P | 49R | 49P | 50R | 50P | 60R | 60P | 70R | 70P | 80R | 80P | 90R | 90P | 100R | 100P |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Nominal torque (Nm) | - | 18 | - | 18 | - | 37 | - | 37 | - | 18 | - | 29 | - | 37 | - | 27 | - | 29 | - | 37 | - | 27 | - | 24 | - | 29 | - | 27 | - | 24 | - | 18 | - | 16 | - | 14 |
| Peak torque Tmax (Nm) | - | 55 | - | 55 | - | 49 | - | 49 | - | 55 | - | 40 | - | 49 | - | 38 | - | 40 | - | 49 | - | 38 | - | 38 | - | 40 | - | 38 | - | 38 | - | 37 | - | 36 | - | 36 |
| Emergency stop torque (Nm) | 1,5 x Tmax | |||||||||||||||||||||||||||||||||||
| Max angular backlash (arc-min) | Standard : ≤8；Option : ≤5 | |||||||||||||||||||||||||||||||||||
| Nominal input speed (rpm) | - | 4000 | - | 4000 | - | 4000 | - | 4000 | - | 4000 | - | 4000 | - | 4000 | - | 4000 | - | 4000 | - | 4000 | - | 4000 | - | 4000 | - | 4000 | - | 4000 | - | 4000 | - | 4000 | - | 4000 | - | 4000 |
| Max input speed (rpm) | - | 7500 | - | 7500 | - | 7500 | - | 7500 | - | 7500 | - | 7500 | - | 7500 | - | 7500 | - | 7500 | - | 7500 | - | 7500 | - | 7500 | - | 7500 | - | 7500 | - | 7500 | - | 7500 | - | 7500 | - | 7500 |
| Max radial load (N) | 1100 | |||||||||||||||||||||||||||||||||||
| Max axial load (N) | 900 | |||||||||||||||||||||||||||||||||||
| Efficiency (%) | ≥94 | |||||||||||||||||||||||||||||||||||
| Torsional stiffness (Nm/min) | 6 | |||||||||||||||||||||||||||||||||||
| Lifespan (h) | 20000 | |||||||||||||||||||||||||||||||||||
| Min / max ambiant temperature (°C) | -15 / +45 | |||||||||||||||||||||||||||||||||||
| Max temperature of the body (°C) | 90 | |||||||||||||||||||||||||||||||||||
| Protection class | IP 65 | |||||||||||||||||||||||||||||||||||
| Noise level (dB) | ≤61 | |||||||||||||||||||||||||||||||||||
| Lubrication | Lifetime lubrication (grease) | |||||||||||||||||||||||||||||||||||
| Coating color | Capri blue (RAL 5019) | |||||||||||||||||||||||||||||||||||
| Input flange | Anodized aluminum | |||||||||||||||||||||||||||||||||||
| Weight | - | |||||||||||||||||||||||||||||||||||
Size :090 - Stage(s) : 1
TECHNICAL DATA
| Ratio | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 |
|---|---|---|---|---|---|---|---|---|
| Nominal torque (Nm) | 70 | 129 | 100 | 81 | 71 | 55 | 47 | 42 |
| Peak torque Tmax (Nm) | 169 | 160 | 112 | 114 | 115 | 111 | 104 | 107 |
| Emergency stop torque (Nm) | 1,5 x Tmax | |||||||
| Max angular backlash (arc-min) | Standard : ≤5；Option : ≤3 | |||||||
| Nominal input speed (rpm) | 3100 | |||||||
| Max input speed (rpm) | 6000 | |||||||
| Max radial load (N) | 2200 | |||||||
| Max axial load (N) | 1950 | |||||||
| Efficiency (%) | ≥97 | |||||||
| Torsional stiffness (Nm/min) | 13 | |||||||
| Lifespan (h) | 20000 | |||||||
| Min / max ambiant temperature (°C) | -15 / +45 | |||||||
| Max temperature of the body (°C) | 90 | |||||||
| Protection class | IP 65 | |||||||
| Noise level (dB) | ≤63 | |||||||
| Lubrication | Lifetime lubrication (grease) | |||||||
| Coating color | Capri blue (RAL 5019) | |||||||
| Input flange | Anodized aluminum | |||||||
| Weight | - | |||||||
Size :090 - Stage(s) : 2
TECHNICAL DATA
| Ratio | 12R | 12P | 15R | 15P | 16R | 16P | 20R | 20P | 21R | 21P | 25R | 25P | 28R | 28P | 30R | 30P | 35R | 35P | 40R | 40P | 42R | 42P | 49R | 49P | 50R | 50P | 60R | 60P | 70R | 70P | 80R | 80P | 90R | 90P | 100R | 100P |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Nominal torque (Nm) | 65 | - | 68 | - | 86 | - | 90 | - | 51 | - | 100 | - | 68 | - | 81 | - | 85 | - | 40 | - | 81 | - | 71 | - | 49 | - | 59 | - | 69 | - | 55 | - | 47 | - | 42 | - |
| Peak torque Tmax (Nm) | 92 | - | 86 | - | 122 | - | 115 | - | 85 | - | 112 | - | 113 | - | 114 | - | 112 | - | 109 | - | 114 | - | 115 | - | 112 | - | 114 | - | 115 | - | 111 | - | 104 | - | 107 | - |
| Emergency stop torque (Nm) | 1,5 x Tmax | |||||||||||||||||||||||||||||||||||
| Max angular backlash (arc-min) | Standard : ≤8；Option : ≤5 | |||||||||||||||||||||||||||||||||||
| Nominal input speed (rpm) | 3100 | - | 3100 | - | 3100 | - | 3100 | - | 3100 | - | 3100 | - | 3100 | - | 3100 | - | 3100 | - | 3100 | - | 3100 | - | 3100 | - | 3100 | - | 3100 | - | 3100 | - | 3100 | - | 3100 | - | 3100 | - |
| Max input speed (rpm) | 6000 | - | 6000 | - | 6000 | - | 6000 | - | 6000 | - | 6000 | - | 6000 | - | 6000 | - | 6000 | - | 6000 | - | 6000 | - | 6000 | - | 6000 | - | 6000 | - | 6000 | - | 6000 | - | 6000 | - | 6000 | - |
| Max radial load (N) | 2200 | |||||||||||||||||||||||||||||||||||
| Max axial load (N) | 1950 | |||||||||||||||||||||||||||||||||||
| Efficiency (%) | ≥94 | |||||||||||||||||||||||||||||||||||
| Torsional stiffness (Nm/min) | 13 | |||||||||||||||||||||||||||||||||||
| Lifespan (h) | 20000 | |||||||||||||||||||||||||||||||||||
| Min / max ambiant temperature (°C) | -15 / +45 | |||||||||||||||||||||||||||||||||||
| Max temperature of the body (°C) | 90 | |||||||||||||||||||||||||||||||||||
| Protection class | IP 65 | |||||||||||||||||||||||||||||||||||
| Noise level (dB) | ≤63 | |||||||||||||||||||||||||||||||||||
| Lubrication | Lifetime lubrication (grease) | |||||||||||||||||||||||||||||||||||
| Coating color | Capri blue (RAL 5019) | |||||||||||||||||||||||||||||||||||
| Input flange | Anodized aluminum | |||||||||||||||||||||||||||||||||||
| Weight | - | |||||||||||||||||||||||||||||||||||
Size :120 - Stage(s) : 1
TECHNICAL DATA
| Ratio | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 |
|---|---|---|---|---|---|---|---|---|
| Nominal torque (Nm) | 200 | 214 | 167 | 179 | 178 | 164 | - | 110 |
| Peak torque Tmax (Nm) | 378 | 415 | 300 | 327 | 279 | 322 | - | 260 |
| Emergency stop torque (Nm) | 1,5 x Tmax | |||||||
| Max angular backlash (arc-min) | Standard : ≤5；Option : ≤3 | |||||||
| Nominal input speed (rpm) | 2800 | - | 2800 | |||||
| Max input speed (rpm) | 5500 | - | 5500 | |||||
| Max radial load (N) | 3600 | |||||||
| Max axial load (N) | 3000 | |||||||
| Efficiency (%) | ≥97 | |||||||
| Torsional stiffness (Nm/min) | 24 | |||||||
| Lifespan (h) | 20000 | |||||||
| Min / max ambiant temperature (°C) | -15 / +45 | |||||||
| Max temperature of the body (°C) | 90 | |||||||
| Protection class | IP 65 | |||||||
| Noise level (dB) | ≤64 | |||||||
| Lubrication | Lifetime lubrication (grease) | |||||||
| Coating color | Capri blue (RAL 5019) | |||||||
| Input flange | Anodized aluminum | |||||||
| Weight | - | |||||||
Size :120 - Stage(s) : 2
TECHNICAL DATA
| Ratio | 12R | 12P | 15R | 15P | 16R | 16P | 20R | 20P | 21R | 21P | 25R | 25P | 28R | 28P | 30R | 30P | 35R | 35P | 40R | 40P | 42R | 42P | 49R | 49P | 50R | 50P | 60R | 60P | 70R | 70P | 80R | 80P | 90R | 90P | 100R | 100P |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Nominal torque (Nm) | 200 | - | 183 | - | 214 | - | 214 | - | 137 | - | 167 | - | 183 | - | 179 | - | 167 | - | 113 | - | 179 | - | 178 | - | 141 | - | 170 | - | 178 | - | 164 | - | 110 | - | ||
| Peak torque Tmax (Nm) | 242 | - | 206 | - | 322 | - | 275 | - | 212 | - | 300 | - | 282 | - | 327 | - | 300 | - | 259 | - | 327 | - | 279 | - | 300 | - | 327 | - | 279 | - | 322 | - | 260 | - | ||
| Emergency stop torque (Nm) | 1,5 x Tmax | |||||||||||||||||||||||||||||||||||
| Max angular backlash (arc-min) | Standard : ≤8；Option : ≤5 | |||||||||||||||||||||||||||||||||||
| Nominal input speed (rpm) | 2800 | - | 2800 | - | 2800 | - | 2800 | - | 2800 | - | 2800 | - | 2800 | - | 2800 | - | 2800 | - | 2800 | - | 2800 | - | 2800 | - | 2800 | - | 2800 | - | 2800 | - | 2800 | - | 2800 | - | ||
| Max input speed (rpm) | 5500 | - | 5500 | - | 5500 | - | 5500 | - | 5500 | - | 5500 | - | 5500 | - | 5500 | - | 5500 | - | 5500 | - | 5500 | - | 5500 | - | 5500 | - | 5500 | - | 5500 | - | 5500 | - | 5500 | - | ||
| Max radial load (N) | 3600 | |||||||||||||||||||||||||||||||||||
| Max axial load (N) | 3000 | |||||||||||||||||||||||||||||||||||
| Efficiency (%) | ≥94 | |||||||||||||||||||||||||||||||||||
| Torsional stiffness (Nm/min) | 24 | |||||||||||||||||||||||||||||||||||
| Lifespan (h) | 20000 | |||||||||||||||||||||||||||||||||||
| Min / max ambiant temperature (°C) | -15 / +45 | |||||||||||||||||||||||||||||||||||
| Max temperature of the body (°C) | 90 | |||||||||||||||||||||||||||||||||||
| Protection class | IP 65 | |||||||||||||||||||||||||||||||||||
| Noise level (dB) | ≤64 | |||||||||||||||||||||||||||||||||||
| Lubrication | Lifetime lubrication (grease) | |||||||||||||||||||||||||||||||||||
| Coating color | Capri blue (RAL 5019) | |||||||||||||||||||||||||||||||||||
| Input flange | Anodized aluminum | |||||||||||||||||||||||||||||||||||
| Weight | - | |||||||||||||||||||||||||||||||||||
Contact us if you can't find the right plan
Filter results
Reset
|
Size :
|
Ratio
|
Output shaft type
|
Recommended coupling diametre
|
Centering diametre
|
PCD
|
Screw type
|
Shaft length
|
2D | 3D | |
|---|---|---|---|---|---|---|---|---|---|---|
| Min | Max | |||||||||
| 060 | 1 stage - ratios 3 to 10 | Key | 14 | 50 | 70 | M4 | 26 | 35 | STEP | |
| 060 | 1 stage - ratios 3 to 10 | Key | 14 | 50 | 70 | M5 | 26 | 35 | STEP | |
| 060 | 1 stage - ratios 3 to 10 | Key | 14 | 30 | 46 | M4 | 21 | 30 | STEP | |
| 060 | 1 stage - ratios 3 to 10 | Key | 14 | 60 | 75 | M5 | 26 | 35 | STEP | |
| 060 | 1 stage - ratios 3 to 10 | Key | 14 | 60 | 75 | M6 | 26 | 35 | STEP | |
| 060 | 1 stage - ratios 3 to 10 | Key | 14 | 50 | 95 | M6 | 32 | 41 | STEP | |
| 060 | 1 stage - ratios 3 to 10 | Key | 14 | 38.1 | 66.67 | M4 | 21 | 30 | STEP | |
| 060 | 1 stage - ratios 3 to 10 | Key | 14 | 38.1 | 66.67 | M5 | 21 | 30 | STEP | |
| 060 | 1 stage - ratios 3 to 10 | Key | 14 | 40 | 63 | M5 | 21 | 30 | STEP | |
| 060 | 1 stage - ratios 3 to 10 | Key | 14 | 50 | 60 | M4 | 26 | 35 | STEP | |
| 060 | 1 stage - ratios 3 to 10 | Key | 19 | 70 | 90 | M5 | 32 | 41 | STEP | |
| 060 | 1 stage - ratios 3 to 10 | Key | 19 | 70 | 90 | M6 | 32 | 41 | STEP | |
| 060 | 1 stage - ratios 3 to 10 | Key | 19 | 80 | 100 | M6 | 32 | 41 | STEP | |
| 090 | 1 stage - ratios 3 to 10 | Key | 22 | 70 | 90 | M6 | 33 | 48 | STEP | |
| 090 | 1 stage - ratios 3 to 10 | Key | 22 | 80 | 100 | M6 | 35 | 50 | STEP | |
| 090 | 1 stage - ratios 3 to 10 | Key | 22 | 70 | 90 | M5 | 33 | 48 | STEP | |
| 090 | 1 stage - ratios 3 to 10 | Key | 22 | 73.025 | 98.43 | M5 | 27 | 42 | STEP | |
| 090 | 1 stage - ratios 3 to 10 | Key | 22 | 73.025 | 98.43 | M6 | 27 | 42 | STEP | |
| 090 | 1 stage - ratios 3 to 10 | Key | 22 | 130 | 165 | M10 | 43.5 | 58.5 | STEP | |
| 090 | 1 stage - ratios 3 to 10 | Key | 22 | STEP | ||||||
| 090 | 1 stage - ratios 3 to 10 | Key | 22 | 70 | 90 | M6 | 28 | 43 | STEP | |
| 090 | 1 stage - ratios 3 to 10 | Key | 22 | 110 | 145 | M8 | 43.5 | 58.5 | STEP | |
| 090 | 1 stage - ratios 3 to 10 | Key | 24 | 95 | 130 | M8 | 41 | 56 | STEP | |
| 090 | 1 stage - ratios 3 to 10 | Key | 24 | 95 | 115 | M6 | 41 | 56 | STEP | |
| 090 | 1 stage - ratios 3 to 10 | Key | 24 | 95 | 115 | M8 | 41 | 56 | STEP | |
| 090 | 1 stage - ratios 3 to 10 | Key | 24 | 110 | 130 | M8 | 36 | 51 | STEP | |
| 090 | 1 stage - ratios 3 to 10 | Key | 24 | 110 | 145 | M8 | 43.5 | 58.5 | STEP | |
| 120 | 1 stage - ratios 3 to 10 | Key | 24 | 95 | 115 | M6 | 41 | 61 | STEP | |
| 120 | 1 stage - ratios 3 to 10 | Key | 24 | 95 | 115 | M8 | 41 | 61 | STEP | |
| 120 | 1 stage - ratios 3 to 10 | Key | 24 | 80 | 100 | M6 | 40.5 | 60.5 | STEP | |
| 120 | 1 stage - ratios 3 to 10 | Key | 24 | 70 | 90 | M5 | 41 | 61 | STEP | |
| 120 | 1 stage - ratios 3 to 10 | Key | 24 | 70 | 90 | M6 | 41 | 61 | STEP | |
| 120 | 1 stage - ratios 3 to 10 | Key | 24 | 95 | 130 | M8 | 50.5 | 70.5 | STEP | |
| 120 | 1 stage - ratios 3 to 10 | Key | 24 | 110 | 130 | M8 | 49 | 69 | STEP | |
| 120 | 1 stage - ratios 3 to 10 | Key | 24 | STEP | ||||||
| 120 | 1 stage - ratios 3 to 10 | Key | 24 | STEP | ||||||
| 120 | 1 stage - ratios 3 to 10 | Key | 24 | 95 | 145 | M10 | 55.5 | 75.5 | STEP | |
| 120 | 1 stage - ratios 3 to 10 | Key | 24 | 110 | 145 | M8 | 49 | 69 | STEP | |
| 120 | 1 stage - ratios 3 to 10 | Key | 28 | 130 | 165 | M10 | 49 | 69 | STEP | |
| 120 | 1 stage - ratios 3 to 10 | Key | 28 | 110 | 145 | M8 | 49 | 69 | STEP | |
| 120 | 1 stage - ratios 3 to 10 | Key | 35 | 130 | 165 | M10 | 49 | 69 | STEP | |
| 120 | 1 stage - ratios 3 to 10 | Key | 35 | 155 | 190 | M10 | 60 | 80 | STEP | |
| 120 | 1 stage - ratios 3 to 10 | Key | 35 | 114.3 | 200 | M12 | 60 | 80 | STEP | |
