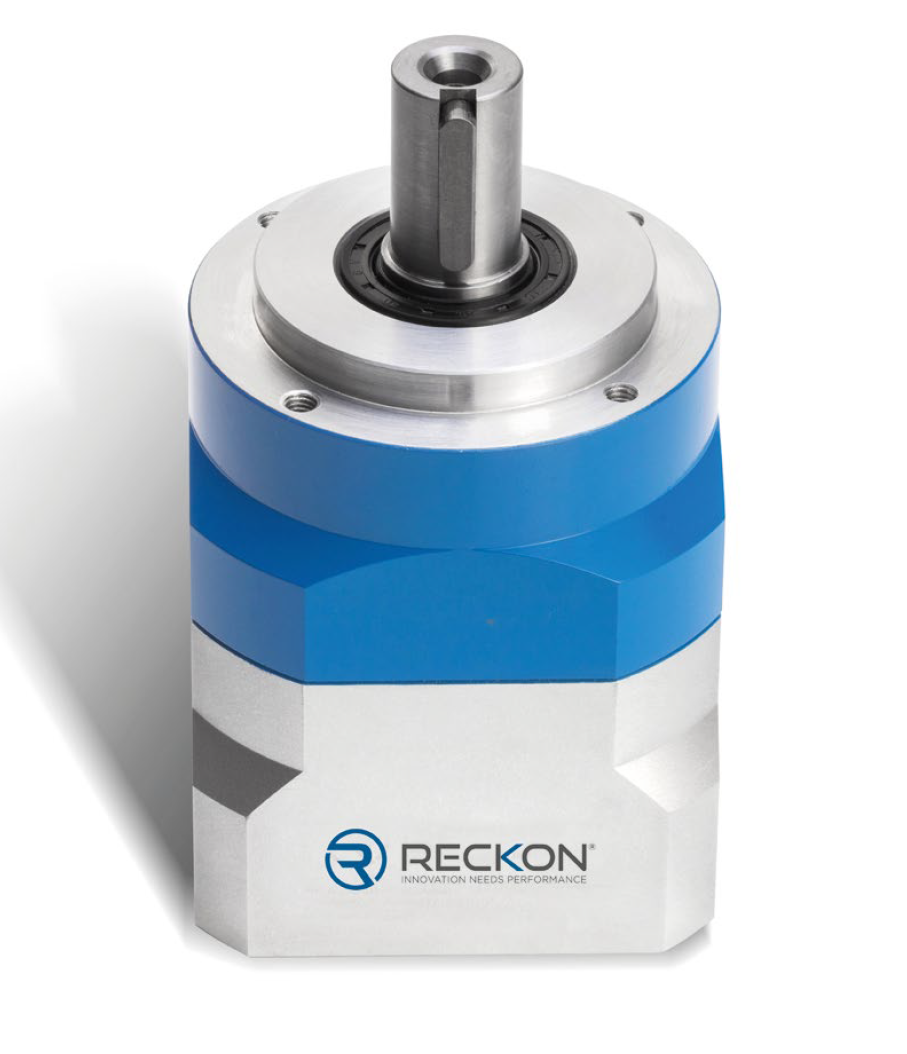

WISER-CI-ST

Economical, helical lines

Wiser is an entry-level, yet highly reliable, helical planetary gearbox. This highly economical gearhead is aimed at delivering torque in quiet applications requiring precision.

Acceleration

Fast reversals

Radial load

Max axial load

Stiffness

Precision

Price range

Motor connection: Servo-motor flange, coupling and bushing

Number of sizes in the line: 3

Wiser is a helical planetary gearbox.

The planet carrier is a "cage" (monobloc part holding the gears from both sides), providing stiffness and acceleration capacity to the gearbox.

The planet carrier is monobloc with the output shaft too.

This cage is centered into the inner planetary ring by means of 2 radial ball-bearings. This construction reinforces the acceleration capacity because the tilt of the shaft is limited, and the gearbox is able to accept significant torque variations.

The motor shaft connection is a balanced coupling, so the efforts on your motor bearings are minimal.

Installation is fast and easy thanks to a 1-screw lock to your motor shaft.

The input flange features weight reduction.

The gearbox will be delivered with the adapting flange corresponding to your motor.

Ratios over 100:1 are possible, do not hesitate to contact us

Select your size :

Size :060 - Stage(s) : 1

TECHNICAL DATA

Ratio	3	4	5	6	7	8	9	10
Nominal torque (Nm)	18	37	29	27	24	18	16	14
Peak torque Tmax (Nm)	55	49	40	38		37	36
Emergency stop torque (Nm)	1,5 x Tmax
Max angular backlash (arc-min)	Standard : ≤5；Option : ≤3
Nominal input speed (rpm)	4000
Max input speed (rpm)	7500
Max radial load (N)	1100
Max axial load (N)	900
Efficiency (%)	≥97
Torsional stiffness (Nm/min)	6
Lifespan (h)	20000
Min / max ambiant temperature (°C)	-15 / +45
Max temperature of the body (°C)	90
Protection class	IP 65
Noise level (dB)	≤61
Lubrication	Lifetime lubrication (grease)
Coating color	Capri blue (RAL 5019)
Input flange	Anodized aluminum
Weight	-

Size :060 - Stage(s) : 2

TECHNICAL DATA

Ratio	12R	12P	15R	15P	16R	16P	20R	20P	21R	21P	25R	25P	28R	28P	30R	30P	35R	35P	40R	40P	42R	42P	49R	49P	50R	50P	60R	60P	70R	70P	80R	80P	90R	90P	100R	100P
Nominal torque (Nm)	-	18	-	18	-	37	-	37	-	18	-	29	-	37	-	27	-	29	-	37	-	27	-	24	-	29	-	27	-	24	-	18	-	16	-	14
Peak torque Tmax (Nm)	-	55	-	55	-	49	-	49	-	55	-	40	-	49	-	38	-	40	-	49	-	38	-	38	-	40	-	38	-	38	-	37	-	36	-	36
Emergency stop torque (Nm)	1,5 x Tmax
Max angular backlash (arc-min)	Standard : ≤8；Option : ≤5
Nominal input speed (rpm)	-	4000	-	4000	-	4000	-	4000	-	4000	-	4000	-	4000	-	4000	-	4000	-	4000	-	4000	-	4000	-	4000	-	4000	-	4000	-	4000	-	4000	-	4000
Max input speed (rpm)	-	7500	-	7500	-	7500	-	7500	-	7500	-	7500	-	7500	-	7500	-	7500	-	7500	-	7500	-	7500	-	7500	-	7500	-	7500	-	7500	-	7500	-	7500
Max radial load (N)	1100
Max axial load (N)	900
Efficiency (%)	≥94
Torsional stiffness (Nm/min)	6
Lifespan (h)	20000
Min / max ambiant temperature (°C)	-15 / +45
Max temperature of the body (°C)	90
Protection class	IP 65
Noise level (dB)	≤61
Lubrication	Lifetime lubrication (grease)
Coating color	Capri blue (RAL 5019)
Input flange	Anodized aluminum
Weight	-

Size :090 - Stage(s) : 1

TECHNICAL DATA

Ratio	3	4	5	6	7	8	9	10
Nominal torque (Nm)	70	129	100	81	71	55	47	42
Peak torque Tmax (Nm)	169	160	112	114	115	111	104	107
Emergency stop torque (Nm)	1,5 x Tmax
Max angular backlash (arc-min)	Standard : ≤5；Option : ≤3
Nominal input speed (rpm)	3100
Max input speed (rpm)	6000
Max radial load (N)	2200
Max axial load (N)	1950
Efficiency (%)	≥97
Torsional stiffness (Nm/min)	13
Lifespan (h)	20000
Min / max ambiant temperature (°C)	-15 / +45
Max temperature of the body (°C)	90
Protection class	IP 65
Noise level (dB)	≤63
Lubrication	Lifetime lubrication (grease)
Coating color	Capri blue (RAL 5019)
Input flange	Anodized aluminum
Weight	-

Size :090 - Stage(s) : 2

TECHNICAL DATA

Ratio	12R	12P	15R	15P	16R	16P	20R	20P	21R	21P	25R	25P	28R	28P	30R	30P	35R	35P	40R	40P	42R	42P	49R	49P	50R	50P	60R	60P	70R	70P	80R	80P	90R	90P	100R	100P
Nominal torque (Nm)	65	-	68	-	86	-	90	-	51	-	100	-	68	-	81	-	85	-	40	-	81	-	71	-	49	-	59	-	69	-	55	-	47	-	42	-
Peak torque Tmax (Nm)	92	-	86	-	122	-	115	-	85	-	112	-	113	-	114	-	112	-	109	-	114	-	115	-	112	-	114	-	115	-	111	-	104	-	107	-
Emergency stop torque (Nm)	1,5 x Tmax
Max angular backlash (arc-min)	Standard : ≤8；Option : ≤5
Nominal input speed (rpm)	3100	-	3100	-	3100	-	3100	-	3100	-	3100	-	3100	-	3100	-	3100	-	3100	-	3100	-	3100	-	3100	-	3100	-	3100	-	3100	-	3100	-	3100	-
Max input speed (rpm)	6000	-	6000	-	6000	-	6000	-	6000	-	6000	-	6000	-	6000	-	6000	-	6000	-	6000	-	6000	-	6000	-	6000	-	6000	-	6000	-	6000	-	6000	-
Max radial load (N)	2200
Max axial load (N)	1950
Efficiency (%)	≥94
Torsional stiffness (Nm/min)	13
Lifespan (h)	20000
Min / max ambiant temperature (°C)	-15 / +45
Max temperature of the body (°C)	90
Protection class	IP 65
Noise level (dB)	≤63
Lubrication	Lifetime lubrication (grease)
Coating color	Capri blue (RAL 5019)
Input flange	Anodized aluminum
Weight	-

Size :120 - Stage(s) : 1

TECHNICAL DATA

Ratio	3	4	5	6	7	8	9	10
Nominal torque (Nm)	200	214	167	179	178	164	-	110
Peak torque Tmax (Nm)	378	415	300	327	279	322	-	260
Emergency stop torque (Nm)	1,5 x Tmax
Max angular backlash (arc-min)	Standard : ≤5；Option : ≤3
Nominal input speed (rpm)	2800						-	2800
Max input speed (rpm)	5500						-	5500
Max radial load (N)	3600
Max axial load (N)	3000
Efficiency (%)	≥97
Torsional stiffness (Nm/min)	24
Lifespan (h)	20000
Min / max ambiant temperature (°C)	-15 / +45
Max temperature of the body (°C)	90
Protection class	IP 65
Noise level (dB)	≤64
Lubrication	Lifetime lubrication (grease)
Coating color	Capri blue (RAL 5019)
Input flange	Anodized aluminum
Weight	-

Size :120 - Stage(s) : 2

TECHNICAL DATA

Ratio	12R	12P	15R	15P	16R	16P	20R	20P	21R	21P	25R	25P	28R	28P	30R	30P	35R	35P	40R	40P	42R	42P	49R	49P	50R	50P	60R	60P	70R	70P	80R	80P	100R	100P
Nominal torque (Nm)	200	-	183	-	214	-	214	-	137	-	167	-	183	-	179	-	167	-	113	-	179	-	178	-	141	-	170	-	178	-	164	-	110	-
Peak torque Tmax (Nm)	242	-	206	-	322	-	275	-	212	-	300	-	282	-	327	-	300	-	259	-	327	-	279	-	300	-	327	-	279	-	322	-	260	-
Emergency stop torque (Nm)	1,5 x Tmax
Max angular backlash (arc-min)	Standard : ≤8；Option : ≤5
Nominal input speed (rpm)	2800	-	2800	-	2800	-	2800	-	2800	-	2800	-	2800	-	2800	-	2800	-	2800	-	2800	-	2800	-	2800	-	2800	-	2800	-	2800	-	2800	-
Max input speed (rpm)	5500	-	5500	-	5500	-	5500	-	5500	-	5500	-	5500	-	5500	-	5500	-	5500	-	5500	-	5500	-	5500	-	5500	-	5500	-	5500	-	5500	-
Max radial load (N)	3600
Max axial load (N)	3000
Efficiency (%)	≥94
Torsional stiffness (Nm/min)	24
Lifespan (h)	20000
Min / max ambiant temperature (°C)	-15 / +45
Max temperature of the body (°C)	90
Protection class	IP 65
Noise level (dB)	≤64
Lubrication	Lifetime lubrication (grease)
Coating color	Capri blue (RAL 5019)
Input flange	Anodized aluminum
Weight	-

Size :

Ratio

Output shaft type

Recommended coupling diametre

Centering diametre

PCD

Screw type

Min shaft length

Max shaft length

Size :	Ratio	Output shaft type	Recommended coupling diametre	Centering diametre	PCD	Screw type	Shaft length		2D	3D
Size :	Ratio	Output shaft type	Recommended coupling diametre	Centering diametre	PCD	Screw type	Min	Max	2D	3D
060	1 stage - ratios 3 to 10	Key	14	50	70	M4	26	35	PDF	STEP
060	1 stage - ratios 3 to 10	Key	14	50	70	M5	26	35	PDF	STEP
060	1 stage - ratios 3 to 10	Key	14	30	46	M4	21	30	PDF	STEP
060	1 stage - ratios 3 to 10	Key	14	60	75	M5	26	35	PDF	STEP
060	1 stage - ratios 3 to 10	Key	14	60	75	M6	26	35	PDF	STEP
060	1 stage - ratios 3 to 10	Key	14	50	95	M6	32	41	PDF	STEP
060	1 stage - ratios 3 to 10	Key	14	38.1	66.67	M4	21	30	PDF	STEP
060	1 stage - ratios 3 to 10	Key	14	38.1	66.67	M5	21	30	PDF	STEP
060	1 stage - ratios 3 to 10	Key	14	40	63	M5	21	30	PDF	STEP
060	1 stage - ratios 3 to 10	Key	14	50	60	M4	26	35	PDF	STEP
060	1 stage - ratios 3 to 10	Key	19	70	90	M5	32	41	PDF	STEP
060	1 stage - ratios 3 to 10	Key	19	70	90	M6	32	41	PDF	STEP
060	1 stage - ratios 3 to 10	Key	19	80	100	M6	32	41	PDF	STEP
090	1 stage - ratios 3 to 10	Key	22	70	90	M6	33	48	PDF	STEP
090	1 stage - ratios 3 to 10	Key	22	80	100	M6	35	50	PDF	STEP
090	1 stage - ratios 3 to 10	Key	22	70	90	M5	33	48	PDF	STEP
090	1 stage - ratios 3 to 10	Key	22	73.025	98.43	M5	27	42	PDF	STEP
090	1 stage - ratios 3 to 10	Key	22	73.025	98.43	M6	27	42	PDF	STEP
090	1 stage - ratios 3 to 10	Key	22	130	165	M10	43.5	58.5	PDF	STEP
090	1 stage - ratios 3 to 10	Key	22						PDF	STEP
090	1 stage - ratios 3 to 10	Key	22	70	90	M6	28	43	PDF	STEP
090	1 stage - ratios 3 to 10	Key	22	110	145	M8	43.5	58.5	PDF	STEP
090	1 stage - ratios 3 to 10	Key	24	95	130	M8	41	56	PDF	STEP
090	1 stage - ratios 3 to 10	Key	24	95	115	M6	41	56	PDF	STEP
090	1 stage - ratios 3 to 10	Key	24	95	115	M8	41	56	PDF	STEP
120	1 stage - ratios 3 to 10	Key	24	95	115	M6	41	61	PDF	STEP
120	1 stage - ratios 3 to 10	Key	24	95	115	M8	41	61	PDF	STEP
120	1 stage - ratios 3 to 10	Key	24	80	100	M6	40.5	60.5	PDF	STEP
120	1 stage - ratios 3 to 10	Key	24	70	90	M5	41	61	PDF	STEP
120	1 stage - ratios 3 to 10	Key	24	70	90	M6	41	61	PDF	STEP
120	1 stage - ratios 3 to 10	Key	24	95	130	M8	50.5	70.5	PDF	STEP
120	1 stage - ratios 3 to 10	Key	24	110	130	M8	49	69	PDF	STEP
120	1 stage - ratios 3 to 10	Key	24						PDF	STEP
120	1 stage - ratios 3 to 10	Key	24						PDF	STEP
120	1 stage - ratios 3 to 10	Key	24	95	145	M10	55.5	75.5	PDF	STEP
120	1 stage - ratios 3 to 10	Key	24	110	145	M8	49	69	PDF	STEP
120	1 stage - ratios 3 to 10	Key	28	130	165	M10	49	69	PDF	STEP
120	1 stage - ratios 3 to 10	Key	28	110	145	M8	49	69	PDF	STEP
120	1 stage - ratios 3 to 10	Key	35	130	165	M10	49	69	PDF	STEP
120	1 stage - ratios 3 to 10	Key	35	155	190	M10	60	80	PDF	STEP
120	1 stage - ratios 3 to 10	Key	35	114.3	200	M12	60	80	PDF	STEP
