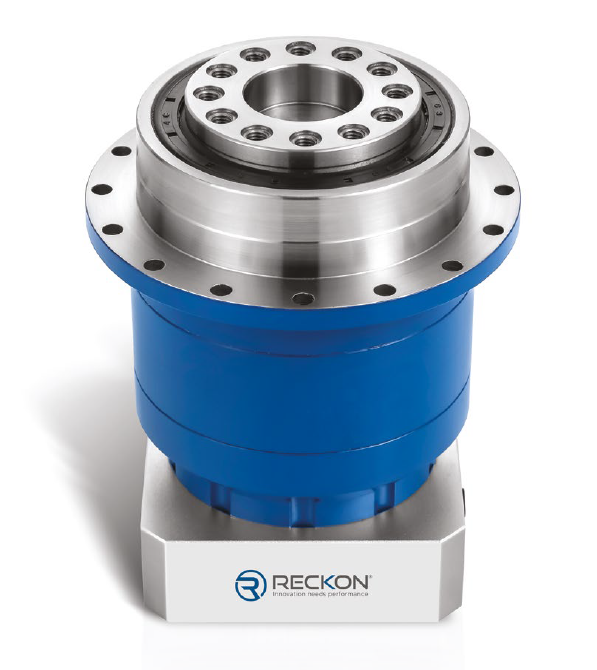

ULTIMATE-TR-CI-ST
High-performance, helical lines
The ULTIMATE-TR series is the high-capacity variant of the Ultimate gearbox line, engineered for extremely demanding applications where high radial loads, fast reversals and positioning precision are critical. With a reinforced monobloc planet carrier, dual-support architecture and high-capacity roller bearings, it delivers superior transmission performance in heavy-duty and high-dynamic servo systems.
- Acceleration
- Fast reversals
- Radial load
- Max axial load
- Stiffness
- Precision
- Price range
- Motor connection
- Servo-motor flange, coupling and bushing
- Number of sizes in the line
- 6
Very low Lost Motion
By combining high torsional rigidity, exceptional tilting stiffness, reduced backlash and minimal synchronization error, ULTIMATE-TR delivers superior dynamic accuracy, even under the most demanding conditions: rapid load changes, high accelerations, abrupt motions and continuous duty cycles.
The challenge of minimizing tilting
Like ULTIMATE-CI, the TR version adopts a double-supported output architecture, with two bearings positioned on either side of the output shaft.
Unlike the standard version, however, ULTIMATE-TR uses cylindrical or tapered roller bearings to maximize both radial and axial stiffness.
This architecture provides exceptional tilting stiffness, which directly improves:
-
the angular stability of the pinion (and therefore meshing quality) in rack-and-pinion applications,
-
the protection of internal gear trains under extreme radial loads, allowing the gearbox to safely transmit higher torque than the CI version at equal service life, or to achieve longer life at equal load,
-
the reduction of the “tilting stiffness” contribution to dynamic accuracy loss during violent accelerations.
Result: precise, clean, and repeatable behavior—even with offset loads, very high accelerations, or intensive motion cycles.
Reinforced torsional rigidity and increased reliability
Like the standard version, ULTIMATE-TR is equipped with an ISO 9409-1 output flange instead of a male shaft. This design choice improves (see dedicated article):
-
torsional rigidity,
-
resistance to rapid torque reversals,
-
accuracy in high-speed cycles,
-
fatigue failure resistance of the mounting,
-
reliability in vibrating environments.
The ISO 9409-1 flange also provides a direct interface for mounting AGV / AMR wheels.
This increased global stiffness further reduces the torsional component of dynamic accuracy loss.
Long-term backlash stability
ULTIMATE-TR integrates Reckon’s premium helical gears, which are:
-
case-hardened and heat-treated,
-
generously dimensioned,
-
optimized for fatigue strength and repeated dynamic cycles,
-
designed with a helix angle reduced to the strict minimum in order to limit axial forces generated during meshing.
They guarantee:
-
long-term angular backlash stability,
-
excellent fatigue resistance,
-
reproducible behavior even under severe loading,
-
quiet operation thanks to the contact ratio offered by helical gearing.
This minimizes the “angular backlash” component of dynamic accuracy loss.
Extreme loads and reinforced tilting stiffness
The key difference of the TR version lies in the use of cylindrical or tapered roller bearings (depending on size).
Compared with the ball bearings used in the standard version, they provide:
-
significantly higher radial and axial load capacity,
-
ultra-stable shaft support under dynamic conditions,
-
much higher tilting stiffness,
-
improved endurance under repeated load cycles.
These bearings play a major role in the exceptional dynamic accuracy of ULTIMATE-TR.
Exceptional synchronization error
Like the CI version, ULTIMATE-TR uses a forged monobloc steel ring gear, broached or machined directly into the housing that accommodates the entire output stage.
This design greatly increases the overall structural stiffness of the assembly, ensures homogeneous gear meshing, and results in one of the lowest synchronization errors on the market.
Even better controlled dynamic behavior
The transmitted torque remains clean without oscillations, stable, and perfectly controlled, enabling accurate positioning even under high dynamics or offset loads.
Simple, safe, and fast connection
As with ULTIMATE-CI, the connection to the motor shaft is ensured by a high-precision balanced coupling, designed to:
-
reduce parasitic loads on the motor bearings,
-
eliminate vibrations and resonances,
-
guarantee smooth and consistent operation.
Installation is fast, safe, and repeatable thanks to a single-bolt clamping system, and each gearbox is delivered with a dedicated motor adapter flange, ensuring immediate installation without adjustment.
Key highlights
-
Extremely low dynamic accuracy loss
-
Reproducible precision over time
-
Perfectly controlled dynamic behavior (torque transmitted without oscillation)
-
Long-lasting performance, even in severe duty cycles
-
Very high radial and axial load capacity
-
Quiet operation
And for even higher torque capacity and even lower lost motion (dynamic accuracy loss), we invite you to discover our top-of-the-range solution: ULTIMATE-HT, featuring additional mounting holes and even lower backlash.
Size :090 - 1 stage
TECHNICAL DATA
| Ratio | 4 | 5.5 | 5 | 7 | 10 |
|---|---|---|---|---|---|
| Nominal torque T2n (Nm) | 154 | 164 | 120 | 108 | 66 |
| Peak torque Tmax (Nm) | 190 | 235 | 170 | 161 | 157 |
| Emergency stop torque (Nm) | 1,5 x Tmax | ||||
| Max angular backlash (arc-min) | Standard : ≤3；Option : ≤1 | ||||
| Nominal input speed (rpm) | 3100 | ||||
| Max input speed (rpm) | 6000 | ||||
| Max radial load (N) | 3950 | ||||
| Max axial load (N) | 8200 | ||||
| Efficiency (%) | ≥97 | ||||
| Torsional stiffness (Nm/min) | 32 | ||||
| Lifespan (h) | 20000 | ||||
| Min / max ambiant temperature (°C) | -15 / +45 | ||||
| Max temperature of the body (°C) | 90 | ||||
| Protection class | IP 65 | ||||
| Noise level (dB) | ≤62 | ||||
| Lubrication | Lifetime lubrication (grease) | ||||
| Coating color | Capri blue (RAL 5019) | ||||
| Input flange | Anodized aluminum | ||||
| Weight | 4.1 | ||||
Inertia (kg.cm²)
| Ratio | 4 | 5 | 7 | 10 | |
|---|---|---|---|---|---|
| Input Diameter | 22 | 0.555 | 0.517 | 0.498 | 0.494 |
| 24 | 0.527 | 0.489 | 0.47 | 0.466 | |
Size :090 - 2 stages
TECHNICAL DATA
| Ratio | 16R | 16P | 20R | 20P | 22P | 22R | 25R | 25P | 27,5R | 27,5P | 28P | 28R | 35P | 35R | 38,5P | 38,5R | 40R | 40P | 49P | 49R | 50R | 50P | 55P | 55R | 70R | 70P | 100P | 100R |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Nominal torque T2n (Nm) | 86 | 154 | 90 | 154 | 164 | 118 | 113 | 120 | 124 | 164 | 154 | 68 | 120 | 85 | 164 | 94 | 40 | 113 | 108 | 49 | 120 | 164 | 54 | 69 | 108 | 66 | ||
| Peak torque Tmax (Nm) | 122 | 190 | 115 | 190 | 235 | 168 | 144 | 170 | 158 | 235 | 190 | 113 | 170 | 141 | 235 | 155 | 109 | 190 | 161 | 136 | 170 | 235 | 150 | 161 | 157 | |||
| Emergency stop torque (Nm) | 1,5 x Tmax | |||||||||||||||||||||||||||
| Max angular backlash (arc-min) | Standard : ≤5；Option : ≤3 | |||||||||||||||||||||||||||
| Nominal input speed (rpm) | 3100 | |||||||||||||||||||||||||||
| Max input speed (rpm) | 6000 | |||||||||||||||||||||||||||
| Max radial load (N) | 3950 | |||||||||||||||||||||||||||
| Max axial load (N) | 8200 | |||||||||||||||||||||||||||
| Efficiency (%) | ≥94 | |||||||||||||||||||||||||||
| Torsional stiffness (Nm/min) | 32 | |||||||||||||||||||||||||||
| Lifespan (h) | 20000 | |||||||||||||||||||||||||||
| Min / max ambiant temperature (°C) | -15 / +45 | |||||||||||||||||||||||||||
| Max temperature of the body (°C) | 90 | |||||||||||||||||||||||||||
| Protection class | IP 65 | |||||||||||||||||||||||||||
| Noise level (dB) | ≤62 | |||||||||||||||||||||||||||
| Lubrication | Lifetime lubrication (grease) | |||||||||||||||||||||||||||
| Coating color | Capri blue (RAL 5019) | |||||||||||||||||||||||||||
| Input flange | Anodized aluminum | |||||||||||||||||||||||||||
| Weight | - | |||||||||||||||||||||||||||
Inertia (kg.cm²)
| Ratio | 16R | 16P | 20R | 20P | 22P | 22R | 25R | 25P | 27,5R | 27,5P | 28P | 28R | 35P | 35R | 38,5P | 38,5R | 40R | 40P | 49P | 49R | 50R | 50P | 55P | 55R | 70R | 70P | 100P | 100R | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Input Diameter | 14 | - | 0.108 | - | 0.108 | - | 0.108 | - | 0.107 | - | 0.107 | - | 0.107 | - | 0.107 | - | 0.107 | - | 0.107 | ||||||||||
| 19 | 0.165 | - | 0.162 | - | 0.165 | 0.162 | - | 0.162 | - | 0.161 | - | 0.161 | - | 0.161 | 0.16 | - | 0.161 | 0.16 | - | 0.16 | - | 0.16 | |||||||
| 22 | - | 0.512 | - | 0.501 | 0.512 | - | 0.501 | - | 0.501 | 0.494 | - | 0.494 | - | 0.494 | - | 0.494 | - | 0.488 | - | 0.488 | - | ||||||||
| 24 | - | 0.484 | - | 0.473 | 0.484 | - | 0.473 | - | 0.473 | 0.466 | - | 0.466 | - | 0.466 | - | 0.46 | 0.466 | - | 0.46 | - | 0.46 | - | |||||||
Size :110 - 1 stage
TECHNICAL DATA
| Ratio | 4 | 5.5 | 5 | 6 | 7 | 8 | 9 | 10 |
|---|---|---|---|---|---|---|---|---|
| Nominal torque T2n (Nm) | 244 | 260 | 190 | 179 | 203 | 164 | 137 | 147 |
| Peak torque Tmax (Nm) | 488 | 500 | 380 | 327 | 379 | 322 | 305 | 353 |
| Emergency stop torque (Nm) | 1,5 x Tmax | |||||||
| Max angular backlash (arc-min) | Standard : ≤3；Option : ≤1 | |||||||
| Nominal input speed (rpm) | 2800 | |||||||
| Max input speed (rpm) | 5500 | |||||||
| Max radial load (N) | 7850 | |||||||
| Max axial load (N) | 6210 | |||||||
| Efficiency (%) | ≥97 | |||||||
| Torsional stiffness (Nm/min) | 82 | |||||||
| Lifespan (h) | 20000 | |||||||
| Min / max ambiant temperature (°C) | -15 / +45 | |||||||
| Max temperature of the body (°C) | 90 | |||||||
| Protection class | IP 65 | |||||||
| Noise level (dB) | ≤63 | |||||||
| Lubrication | Lifetime lubrication (grease) | |||||||
| Coating color | Capri blue (RAL 5019) | |||||||
| Input flange | Anodized aluminum | |||||||
| Weight | - | |||||||
Inertia (kg.cm²)
| Ratio | 4 | 5 | 6 | 7 | 8 | 9 | 10 | |
|---|---|---|---|---|---|---|---|---|
| Input Diameter | 24 | 1.973 | 1.843 | 1.791 | 1.785 | 1.775 | 1.774 | 1.772 |
| 28 | 2.303 | 2.173 | 2.064 | 2.115 | 2.048 | 2.104 | 2.102 | |
| 35 | 3.834 | 3.704 | 3.652 | 3.647 | 3.636 | 3.635 | 3.634 | |
Size :110 - 2 stages
TECHNICAL DATA
| Ratio | 16R | 16P | 20R | 20P | 22P | 22R | 25R | 25P | 27,5R | 27,5P | 28P | 28R | 30R | 30P | 35P | 35R | 38,5P | 38,5R | 40R | 40P | 42R | 42P | 49P | 49R | 50R | 50P | 55P | 55R | 60R | 60P | 70R | 70P | 80R | 80P | 90R | 90P | 100P | 100R |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Nominal torque T2n (Nm) | 244 | 260 | 190 | 260 | 244 | 183 | 179 | 190 | 260 | 252 | 113 | 218 | 179 | 203 | 141 | 190 | 260 | 156 | 170 | 179 | 198 | 203 | 164 | 137 | 147 | |||||||||||||
| Peak torque Tmax (Nm) | 322 | 488 | 275 | 488 | 500 | 443 | 344 | 380 | 378 | 500 | 488 | 282 | 327 | 380 | 353 | 500 | 388 | 259 | 488 | 327 | 379 | 324 | 380 | 500 | 356 | 327 | 379 | 322 | 305 | 353 | ||||||||
| Emergency stop torque (Nm) | 1,5 x Tmax | |||||||||||||||||||||||||||||||||||||
| Max angular backlash (arc-min) | Standard : ≤5；Option : ≤3 | |||||||||||||||||||||||||||||||||||||
| Nominal input speed (rpm) | 2800 | |||||||||||||||||||||||||||||||||||||
| Max input speed (rpm) | 5500 | |||||||||||||||||||||||||||||||||||||
| Max radial load (N) | 7850 | |||||||||||||||||||||||||||||||||||||
| Max axial load (N) | 6210 | |||||||||||||||||||||||||||||||||||||
| Efficiency (%) | ≥94 | |||||||||||||||||||||||||||||||||||||
| Torsional stiffness (Nm/min) | 82 | |||||||||||||||||||||||||||||||||||||
| Lifespan (h) | 20000 | |||||||||||||||||||||||||||||||||||||
| Min / max ambiant temperature (°C) | -15 / +45 | |||||||||||||||||||||||||||||||||||||
| Max temperature of the body (°C) | 90 | |||||||||||||||||||||||||||||||||||||
| Protection class | IP 65 | |||||||||||||||||||||||||||||||||||||
| Noise level (dB) | ≤63 | |||||||||||||||||||||||||||||||||||||
| Lubrication | Lifetime lubrication (grease) | |||||||||||||||||||||||||||||||||||||
| Coating color | Capri blue (RAL 5019) | |||||||||||||||||||||||||||||||||||||
| Input flange | Anodized aluminum | |||||||||||||||||||||||||||||||||||||
| Weight | - | |||||||||||||||||||||||||||||||||||||
Inertia (kg.cm²)
| Ratio | 16R | 16P | 20R | 20P | 22P | 22R | 25R | 25P | 27,5R | 27,5P | 28P | 28R | 30R | 30P | 35P | 35R | 38,5P | 38,5R | 40R | 40P | 42R | 42P | 49P | 49R | 50R | 50P | 55P | 55R | 60R | 60P | 70R | 70P | 80R | 80P | 90R | 90P | 100P | 100R | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Input Diameter | 22 | 0.512 | - | 0.501 | - | 0.512 | 0.501 | - | 0.501 | - | 0.494 | 0.501 | - | 0.494 | - | 0.494 | 0.488 | - | 0.494 | - | 0.494 | 0.488 | - | 0.488 | - | 0.488 | - | 0.488 | - | 0.488 | - | 0.488 | |||||||
| 24 | 0.484 | 2.456 | 0.473 | 2.415 | 2.456 | 0.484 | 0.473 | 2.415 | 0.473 | 2.415 | 2.379 | 0.466 | 0.473 | 2.415 | 2.379 | 0.466 | 2.379 | 0.466 | 0.46 | 2.388 | 0.466 | 2.379 | 0.466 | 0.46 | 2.388 | 0.46 | 2.388 | 0.46 | 2.388 | 0.46 | 2.388 | 0.46 | 2.388 | 0.46 | |||||
| 28 | - | 2.326 | - | 2.285 | 2.326 | - | 2.285 | - | 2.285 | 2.268 | - | 2.285 | 2.268 | - | 2.268 | - | 2.277 | - | 2.268 | - | 2.277 | - | 2.277 | - | 2.277 | - | 2.277 | - | 2.277 | - | |||||||||
| 35 | - | 2.974 | - | 2.933 | 2.974 | - | 2.933 | - | 2.933 | 2.916 | - | 2.933 | 2.916 | - | 2.916 | - | 2.912 | - | 2.916 | - | 2.912 | - | 2.912 | - | 2.912 | - | 2.912 | - | 2.912 | - | |||||||||
Size :140 - 1 stage
TECHNICAL DATA
| Ratio | 4 | 5.5 | 5 | 6 | 7 | 8 | 9 | 10 |
|---|---|---|---|---|---|---|---|---|
| Nominal torque T2n (Nm) | 407 | 590 | 438 | 440 | 465 | 408 | 353 | 308 |
| Peak torque Tmax (Nm) | 810 | 1100 | 870 | 815 | 804 | 765 | 728 | 715 |
| Emergency stop torque (Nm) | 1,5 x Tmax | |||||||
| Max angular backlash (arc-min) | Standard : ≤3；Option : ≤1 | |||||||
| Nominal input speed (rpm) | 2600 | |||||||
| Max input speed (rpm) | 5000 | |||||||
| Max radial load (N) | 23000 | |||||||
| Max axial load (N) | 19100 | |||||||
| Efficiency (%) | ≥97 | |||||||
| Torsional stiffness (Nm/min) | 150 | |||||||
| Lifespan (h) | 20000 | |||||||
| Min / max ambiant temperature (°C) | -15 / +45 | |||||||
| Max temperature of the body (°C) | 90 | |||||||
| Protection class | IP 65 | |||||||
| Noise level (dB) | ≤66 | |||||||
| Lubrication | Lifetime lubrication (grease) | |||||||
| Coating color | Capri blue (RAL 5019) | |||||||
| Input flange | Anodized aluminum | |||||||
| Weight | - | |||||||
Inertia (kg.cm²)
| Ratio | 4 | 5 | 6 | 7 | 8 | 9 | 10 | |
|---|---|---|---|---|---|---|---|---|
| Input Diameter | 24 | 3.323 | 2.857 | 2.739 | 2.637 | 2.614 | 2.605 | 2.601 |
| 28 | - | 2.75 | 2.632 | 2.516 | 2.493 | 2.484 | 2.48 | |
| 35 | 10.341 | 9.96 | 9.842 | 9.811 | 9.788 | 9.708 | 9.704 | |
| 38 | 10.005 | 9.625 | 9.507 | 9.476 | 9.453 | 9.448 | ||
| 42 | 9.644 | 9.264 | 9.146 | 9.115 | 9.092 | 9.012 | 9.008 | |
Size :140 - 2 stages
TECHNICAL DATA
| Ratio | 16R | 16P | 20R | 20P | 22P | 22R | 25R | 25P | 27,5R | 27,5P | 28P | 28R | 30R | 30P | 35P | 35R | 38,5P | 38,5R | 40R | 40P | 42R | 42P | 49P | 49R | 50R | 50P | 55P | 55R | 60R | 60P | 70R | 70P | 80R | 80P | 90R | 90P | 100P | 100R |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Nominal torque T2n (Nm) | 377 | 407 | 393 | 407 | 590 | 518 | 438 | 540 | 590 | 407 | 359 | 440 | 438 | 590 | 494 | 218 | 407 | 440 | 465 | 273 | 438 | 590 | 300 | 327 | 440 | 382 | 465 | 408 | 353 | 308 | ||||||||
| Peak torque Tmax (Nm) | 669 | 810 | 636 | 810 | 1100 | 920 | 795 | 870 | 875 | 1100 | 810 | 609 | 815 | 870 | 762 | 1100 | 838 | 560 | 810 | 815 | 804 | 700 | 870 | 1100 | 770 | 815 | 804 | 765 | 728 | 715 | ||||||||
| Emergency stop torque (Nm) | 1,5 x Tmax | |||||||||||||||||||||||||||||||||||||
| Max angular backlash (arc-min) | Standard : ≤5；Option : ≤3 | |||||||||||||||||||||||||||||||||||||
| Nominal input speed (rpm) | 2600 | |||||||||||||||||||||||||||||||||||||
| Max input speed (rpm) | 5000 | |||||||||||||||||||||||||||||||||||||
| Max radial load (N) | 23000 | |||||||||||||||||||||||||||||||||||||
| Max axial load (N) | 19100 | |||||||||||||||||||||||||||||||||||||
| Efficiency (%) | ≥94 | |||||||||||||||||||||||||||||||||||||
| Torsional stiffness (Nm/min) | 150 | |||||||||||||||||||||||||||||||||||||
| Lifespan (h) | 20000 | |||||||||||||||||||||||||||||||||||||
| Min / max ambiant temperature (°C) | -15 / +45 | |||||||||||||||||||||||||||||||||||||
| Max temperature of the body (°C) | 90 | |||||||||||||||||||||||||||||||||||||
| Protection class | IP 65 | |||||||||||||||||||||||||||||||||||||
| Noise level (dB) | ≤66 | |||||||||||||||||||||||||||||||||||||
| Lubrication | Lifetime lubrication (grease) | |||||||||||||||||||||||||||||||||||||
| Coating color | Capri blue (RAL 5019) | |||||||||||||||||||||||||||||||||||||
| Input flange | Anodized aluminum | |||||||||||||||||||||||||||||||||||||
| Weight | - | |||||||||||||||||||||||||||||||||||||
Inertia (kg.cm²)
| Ratio | 16R | 16P | 20R | 20P | 22P | 22R | 25R | 25P | 27,5R | 27,5P | 28P | 28R | 30R | 30P | 35P | 35R | 38,5P | 38,5R | 40R | 40P | 42R | 42P | 49P | 49R | 50R | 50P | 55P | 55R | 60R | 60P | 70R | 70P | 80R | 80P | 90R | 90P | 100P | 100R | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Input Diameter | 24 | 2.456 | 2.949 | 2.415 | 2.757 | 2.949 | 2.456 | 2.415 | 2.757 | 2.415 | 2.757 | 2.612 | 2.379 | 2.415 | 2.757 | 2.612 | 2.379 | 2.612 | 2.379 | 2.388 | 2.595 | 2.379 | 2.612 | 2.379 | 2.388 | 2.595 | 2.388 | 2.595 | 2.388 | 2.595 | 2.388 | 2.595 | 2.388 | 2.595 | 2.388 | ||||
| 28 | 2.326 | 2.842 | 2.285 | 2.65 | 2.842 | 2.326 | 2.285 | 2.65 | 2.285 | 2.65 | 2.491 | 2.268 | 2.285 | 2.65 | 2.491 | 2.268 | 2.491 | 2.268 | 2.277 | 2.473 | 2.268 | 2.491 | 2.268 | 2.277 | 2.473 | 2.277 | 2.473 | 2.277 | 2.473 | 2.277 | 2.473 | 2.277 | 2.473 | 2.277 | |||||
| 35 | 2.974 | 10.05 | 2.933 | 9.86 | 10.05 | 2.974 | 2.933 | 9.86 | 2.933 | 9.86 | 9.786 | 2.916 | 2.933 | 9.86 | 9.786 | 2.916 | 9.786 | 2.916 | 2.912 | 9.697 | 2.916 | 9.786 | 2.916 | 2.912 | 9.697 | 2.912 | 9.697 | 2.912 | 9.697 | 2.912 | 9.697 | 2.912 | 9.697 | 2.912 | |||||
| 38 | - | 9.718 | - | 9.525 | 9.718 | - | 9.525 | - | 9.525 | 9.451 | - | 9.525 | 9.451 | - | 9.451 | - | 9.442 | - | 9.451 | - | 9.442 | - | 9.442 | - | 9.442 | - | 9.442 | - | 9.442 | - | |||||||||
| 42 | - | 9.357 | - | 9.164 | 9.357 | - | 9.164 | - | 9.164 | 9.09 | - | 9.164 | 9.09 | - | 9.09 | - | 9.01 | - | 9.09 | - | 9.01 | - | 9.01 | - | 9.01 | - | 9.01 | - | 9.01 | - | |||||||||
Size :200 - 1 stage
TECHNICAL DATA
| Ratio | 4 | 5.5 | 5 | 6 | 7 | 8 | 9 | 10 |
|---|---|---|---|---|---|---|---|---|
| Nominal torque T2n (Nm) | 1180 | 1660 | 1225 | 1300 | 1185 | 1035 | 922 | |
| Peak torque Tmax (Nm) | 1786 | 2900 | 2380 | 2250 | 2170 | 2050 | 1970 | 1470 |
| Emergency stop torque (Nm) | 1,5 x Tmax | |||||||
| Max angular backlash (arc-min) | Standard : ≤3；Option : ≤1 | |||||||
| Nominal input speed (rpm) | 2000 | |||||||
| Max input speed (rpm) | 4500 | |||||||
| Max radial load (N) | 22500 | |||||||
| Max axial load (N) | 17400 | |||||||
| Efficiency (%) | ≥97 | |||||||
| Torsional stiffness (Nm/min) | 600 | |||||||
| Lifespan (h) | 20000 | |||||||
| Min / max ambiant temperature (°C) | -15 / +45 | |||||||
| Max temperature of the body (°C) | 90 | |||||||
| Protection class | IP 65 | |||||||
| Noise level (dB) | ≤71 | |||||||
| Lubrication | Lifetime lubrication (grease) | |||||||
| Coating color | Capri blue (RAL 5019) | |||||||
| Input flange | Anodized aluminum | |||||||
| Weight | 31 | |||||||
Inertia (kg.cm²)
| Ratio | 4 | 5 | 6 | 7 | 8 | 9 | 10 | |
|---|---|---|---|---|---|---|---|---|
| Input Diameter | 24 | 12.623 | 10.74 | 10.164 | - | 9.782 | 9.762 | |
| 35 | 19.273 | 17.39 | 16.821 | 16.397 | 16.281 | 16.236 | 16.216 | |
| 38 | 18.922 | 17.04 | 16.463 | 16.046 | 15.931 | 15.885 | 15.865 | |
| 42 | 18.314 | 16.431 | 15.855 | 15.438 | 15.322 | 15.277 | 15.257 | |
Size :200 - 2 stages
TECHNICAL DATA
| Ratio | 16R | 16P | 20R | 20P | 22P | 22R | 25R | 25P | 27,5R | 27,5P | 28P | 28R | 30R | 30P | 35P | 35R | 38,5P | 38,5R | 40R | 40P | 42R | 42P | 49P | 49R | 50R | 50P | 55P | 55R | 60R | 60P | 70R | 70P | 80R | 80P | 90R | 90P | 100P | 100R |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Nominal torque T2n (Nm) | 764 | 1180 | 1096 | 1180 | 1660 | 1051 | 1225 | 1507 | 1660 | 1180 | 960 | 1225 | 1200 | 1660 | 1320 | 577 | 1180 | 1225 | 1300 | 721 | 1225 | 1660 | 794 | 866 | 1225 | 1010 | 1300 | 1154 | 1185 | 1035 | 922 | |||||||
| Peak torque Tmax (Nm) | 1524 | 1786 | 2900 | 2095 | 2238 | 2380 | 2462 | 2900 | 1786 | 1651 | 2250 | 2380 | 2064 | 2900 | 2270 | 1480 | 1786 | 2250 | 2170 | 1850 | 2380 | 2900 | 2035 | 2220 | 2250 | 2170 | 2050 | 1970 | 1470 | |||||||||
| Emergency stop torque (Nm) | 1,5 x Tmax | |||||||||||||||||||||||||||||||||||||
| Max angular backlash (arc-min) | Standard : ≤5；Option : ≤3 | |||||||||||||||||||||||||||||||||||||
| Nominal input speed (rpm) | 2000 | |||||||||||||||||||||||||||||||||||||
| Max input speed (rpm) | 4500 | |||||||||||||||||||||||||||||||||||||
| Max radial load (N) | 22500 | |||||||||||||||||||||||||||||||||||||
| Max axial load (N) | 17400 | |||||||||||||||||||||||||||||||||||||
| Efficiency (%) | ≥94 | |||||||||||||||||||||||||||||||||||||
| Torsional stiffness (Nm/min) | 600 | |||||||||||||||||||||||||||||||||||||
| Lifespan (h) | 20000 | |||||||||||||||||||||||||||||||||||||
| Min / max ambiant temperature (°C) | -15 / +45 | |||||||||||||||||||||||||||||||||||||
| Max temperature of the body (°C) | 90 | |||||||||||||||||||||||||||||||||||||
| Protection class | IP 65 | |||||||||||||||||||||||||||||||||||||
| Noise level (dB) | ≤71 | |||||||||||||||||||||||||||||||||||||
| Lubrication | Lifetime lubrication (grease) | |||||||||||||||||||||||||||||||||||||
| Coating color | Capri blue (RAL 5019) | |||||||||||||||||||||||||||||||||||||
| Input flange | Anodized aluminum | |||||||||||||||||||||||||||||||||||||
| Weight | - | |||||||||||||||||||||||||||||||||||||
Inertia (kg.cm²)
| Ratio | 16R | 16P | 20R | 20P | 22P | 22R | 25R | 25P | 27,5R | 27,5P | 28P | 28R | 30R | 30P | 35P | 35R | 38,5P | 38,5R | 40R | 40P | 42R | 42P | 49P | 49R | 50R | 50P | 55P | 55R | 60R | 60P | 70R | 70P | 80R | 80P | 90R | 90P | 100P | 100R | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Input Diameter | 24 | 2.949 | 11.529 | 2.757 | 10.817 | 11.529 | 2.949 | 2.757 | 10.817 | 2.757 | 10.817 | 10.557 | 2.612 | 2.757 | 10.817 | 10.557 | 2.612 | 10.557 | 2.612 | 2.595 | 10.556 | 2.612 | 10.557 | 2.612 | 2.595 | 10.556 | 2.595 | 10.556 | 2.595 | 10.556 | 2.595 | 10.556 | 2.595 | 10.556 | 2.595 | ||||
| 28 | 2.842 | - | 2.65 | - | 2.842 | 2.65 | - | 2.65 | - | 2.491 | 2.65 | - | 2.491 | - | 2.491 | 2.473 | - | 2.491 | - | 2.491 | 2.473 | - | 2.473 | - | 2.473 | - | 2.473 | - | 2.473 | - | 2.473 | ||||||||
| 35 | 10.053 | 16.943 | 9.86 | 16.231 | 16.943 | 10.053 | 9.86 | 16.231 | 9.86 | 16.231 | 15.946 | 9.786 | 9.86 | 16.231 | 15.946 | 9.786 | 15.946 | 9.786 | 9.697 | 15.881 | 9.786 | 15.946 | 9.786 | 9.697 | 15.881 | 9.697 | 15.881 | 9.697 | 15.881 | 9.697 | 15.881 | 9.697 | 15.881 | 9.697 | |||||
| 38 | 9.717 | 16.598 | 9.525 | 15.886 | 16.598 | 9.717 | 9.525 | 15.886 | 9.525 | 15.886 | 15.601 | 9.451 | 9.525 | 15.886 | 15.601 | 9.451 | 15.601 | 9.451 | 9.442 | 15.553 | 9.451 | 15.601 | 9.451 | 9.442 | 15.553 | 9.442 | 15.553 | 9.442 | 15.553 | 9.442 | 15.553 | 9.442 | 15.553 | 9.442 | |||||
| 42 | 9.357 | 15.999 | 9.164 | 15.287 | 15.999 | 9.357 | 9.164 | 15.287 | 9.164 | 15.287 | 15.002 | 9.09 | 9.164 | 15.287 | 15.002 | 9.09 | 15.002 | 9.09 | 9.01 | 14.937 | 9.09 | 15.002 | 9.09 | 9.01 | 14.937 | 9.01 | 14.937 | 9.01 | 14.937 | 9.01 | 14.937 | 9.01 | 14.937 | - | 9.01 | ||||
Size :255 - 1 stage
TECHNICAL DATA
| Ratio | 4 | 5.5 | 5 | 6 | 7 | 8 | 9 | 10 |
|---|---|---|---|---|---|---|---|---|
| Nominal torque T2n (Nm) | 3075 | 3270 | 2390 | 2420 | 2560 | 2450 | 2150 | 1925 |
| Peak torque Tmax (Nm) | 5950 | 5630 | 4770 | 4450 | 4400 | 4170 | 4000 | 3950 |
| Emergency stop torque (Nm) | 1,5 x Tmax | |||||||
| Max angular backlash (arc-min) | Standard : ≤3；Option : ≤1 | |||||||
| Nominal input speed (rpm) | 1700 | |||||||
| Max input speed (rpm) | 3000 | |||||||
| Max radial load (N) | 36500 | |||||||
| Max axial load (N) | 32600 | |||||||
| Efficiency (%) | ≥97 | |||||||
| Torsional stiffness (Nm/min) | 1000 | |||||||
| Lifespan (h) | 20000 | |||||||
| Min / max ambiant temperature (°C) | -15 / +45 | |||||||
| Max temperature of the body (°C) | 90 | |||||||
| Protection class | IP 65 | |||||||
| Noise level (dB) | ≤75 | |||||||
| Lubrication | Lifetime lubrication (grease) | |||||||
| Coating color | Capri blue (RAL 5019) | |||||||
| Input flange | Anodized aluminum | |||||||
| Weight | 61.5 | |||||||
Size :255 - 2 stages
TECHNICAL DATA
| Ratio | 16R | 16P | 20R | 20P | 22P | 22R | 25R | 25P | 27,5R | 27,5P | 28P | 28R | 30R | 30P | 35P | 35R | 38,5P | 38,5R | 40R | 40P | 42R | 42P | 49P | 49R | 50R | 50P | 55P | 55R | 60R | 60P | 70R | 70P | 80R | 80P | 90R | 90P | 100P | 100R |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Nominal torque T2n (Nm) | 2244 | 3075 | 2340 | 3075 | 3270 | 3085 | 2390 | 3218 | 3270 | 3075 | 2222 | 2420 | 2390 | 3270 | 3055 | 1397 | 3075 | 2420 | 2560 | 1746 | 2390 | 3270 | 1921 | 2096 | 2420 | 2445 | 2560 | 2450 | 2150 | 1925 | ||||||||
| Peak torque Tmax (Nm) | 4240 | 5950 | 3885 | 5950 | 5630 | 4770 | 5342 | 5630 | 5950 | 3611 | 4450 | 4770 | 4514 | 5630 | 4965 | 3337 | 5950 | 4450 | 4400 | 4171 | 4770 | 5630 | 4589 | 4450 | 4400 | 4170 | 4000 | 3950 | ||||||||||
| Emergency stop torque (Nm) | 1,5 x Tmax | |||||||||||||||||||||||||||||||||||||
| Max angular backlash (arc-min) | Standard : ≤5；Option : ≤3 | |||||||||||||||||||||||||||||||||||||
| Nominal input speed (rpm) | 1700 | |||||||||||||||||||||||||||||||||||||
| Max input speed (rpm) | 3000 | |||||||||||||||||||||||||||||||||||||
| Max radial load (N) | 36500 | |||||||||||||||||||||||||||||||||||||
| Max axial load (N) | 32600 | |||||||||||||||||||||||||||||||||||||
| Efficiency (%) | ≥94 | |||||||||||||||||||||||||||||||||||||
| Torsional stiffness (Nm/min) | 1000 | |||||||||||||||||||||||||||||||||||||
| Lifespan (h) | 20000 | |||||||||||||||||||||||||||||||||||||
| Min / max ambiant temperature (°C) | -15 / +45 | |||||||||||||||||||||||||||||||||||||
| Max temperature of the body (°C) | 90 | |||||||||||||||||||||||||||||||||||||
| Protection class | IP 65 | |||||||||||||||||||||||||||||||||||||
| Noise level (dB) | ≤75 | |||||||||||||||||||||||||||||||||||||
| Lubrication | Lifetime lubrication (grease) | |||||||||||||||||||||||||||||||||||||
| Coating color | Capri blue (RAL 5019) | |||||||||||||||||||||||||||||||||||||
| Input flange | Anodized aluminum | |||||||||||||||||||||||||||||||||||||
| Weight | - | |||||||||||||||||||||||||||||||||||||
Inertia (kg.cm²)
| Ratio | 16R | 20R | 22R | 25R | 27,5R | 28R | 30R | 35R | 38,5R | 40R | 42R | 49R | 50R | 55R | 60R | 70R | 80R | 90R | 100R | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Input Diameter | 24 | 11.529 | 10.817 | 11.529 | 10.817 | 10.557 | 10.817 | 10.557 | 10.556 | 10.557 | 10.556 | |||||||||
| 35 | 16.943 | 16.231 | 16.943 | 16.231 | 15.946 | 16.231 | 15.946 | 15.881 | 15.946 | 15.881 | ||||||||||
| 38 | 16.598 | 15.886 | 16.598 | 15.886 | 15.601 | 15.886 | 15.601 | 15.553 | 15.601 | 15.553 | ||||||||||
| 42 | 15.999 | 15.287 | 15.999 | 15.287 | 15.002 | 15.287 | 15.002 | 14.937 | 15.002 | 14.937 | ||||||||||
Size :285 - 1 stage
TECHNICAL DATA
| Ratio | 4 | 5.5 | 5 | 6 | 7 | 8 | 9 | 10 |
|---|---|---|---|---|---|---|---|---|
| Nominal torque T2n (Nm) | 4252 | 4500 | 3663 | 3670 | 3900 | 3800 | 3330 | 2980 |
| Peak torque Tmax (Nm) | 8474 | 8636 | 7303 | 6235 | 6643 | 6260 | 6000 | |
| Emergency stop torque (Nm) | 1,5 x Tmax | |||||||
| Max angular backlash (arc-min) | Standard : ≤3；Option : ≤1 | |||||||
| Nominal input speed (rpm) | 1500 | |||||||
| Max input speed (rpm) | 3000 | |||||||
| Max radial load (N) | 42750 | |||||||
| Max axial load (N) | 37500 | |||||||
| Efficiency (%) | ≥97 | |||||||
| Torsional stiffness (Nm/min) | 1400 | |||||||
| Lifespan (h) | 20000 | |||||||
| Min / max ambiant temperature (°C) | -15 / +45 | |||||||
| Max temperature of the body (°C) | 90 | |||||||
| Protection class | IP 65 | |||||||
| Noise level (dB) | ≤77 | |||||||
| Lubrication | Lifetime lubrication (grease) | |||||||
| Coating color | Capri blue (RAL 5019) | |||||||
| Input flange | Anodized aluminum | |||||||
| Weight | 85 | |||||||
Size :285 - 2 stages
TECHNICAL DATA
| Ratio | 16R | 16P | 20R | 20P | 22P | 22R | 25R | 25P | 27,5R | 27,5P | 28P | 28R | 30R | 30P | 35P | 35R | 38,5P | 38,5R | 40R | 40P | 42R | 42P | 49P | 49R | 50R | 50P | 55P | 55R | 60R | 60P | 70R | 70P | 80R | 80P | 90R | 90P | 100P | 100R |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Nominal torque T2n (Nm) | 4252 | 4500 | 3663 | 4500 | 4252 | 4251 | 3670 | 3663 | 4500 | 4236 | 4252 | 3670 | 3900 | 3663 | 4500 | 3670 | 3900 | 3800 | 3330 | 2980 | ||||||||||||||||||
| Peak torque Tmax (Nm) | 8474 | 8636 | 7303 | 8636 | 8474 | 6235 | 7303 | 8636 | 8474 | 6235 | 6643 | 7303 | 8636 | 6235 | 6643 | 6260 | 6000 | |||||||||||||||||||||
| Emergency stop torque (Nm) | 1,5 x Tmax | |||||||||||||||||||||||||||||||||||||
| Max angular backlash (arc-min) | Standard : ≤5；Option : ≤3 | |||||||||||||||||||||||||||||||||||||
| Nominal input speed (rpm) | 1500 | |||||||||||||||||||||||||||||||||||||
| Max input speed (rpm) | 3000 | |||||||||||||||||||||||||||||||||||||
| Max radial load (N) | 42750 | |||||||||||||||||||||||||||||||||||||
| Max axial load (N) | 37500 | |||||||||||||||||||||||||||||||||||||
| Efficiency (%) | ≥94 | |||||||||||||||||||||||||||||||||||||
| Torsional stiffness (Nm/min) | 1400 | |||||||||||||||||||||||||||||||||||||
| Lifespan (h) | 20000 | |||||||||||||||||||||||||||||||||||||
| Min / max ambiant temperature (°C) | -15 / +45 | |||||||||||||||||||||||||||||||||||||
| Max temperature of the body (°C) | 90 | |||||||||||||||||||||||||||||||||||||
| Protection class | IP 65 | |||||||||||||||||||||||||||||||||||||
| Noise level (dB) | ≤77 | |||||||||||||||||||||||||||||||||||||
| Lubrication | Lifetime lubrication (grease) | |||||||||||||||||||||||||||||||||||||
| Coating color | Capri blue (RAL 5019) | |||||||||||||||||||||||||||||||||||||
| Input flange | Anodized aluminum | |||||||||||||||||||||||||||||||||||||
| Weight | - | |||||||||||||||||||||||||||||||||||||
Filter results
Reset
|
Size :
|
Ratio
|
Output shaft type
|
Recommended coupling diametre
|
Centering diametre
|
PCD
|
Screw type
|
Shaft length
|
2D | 3D | |
|---|---|---|---|---|---|---|---|---|---|---|
| Min | Max | |||||||||
| 090 | 1 stage - ratios 4 to 10 | Flanged | 22 | 70 | 90 | M6 | 33 | 48 | STEP | |
| 090 | 1 stage - ratios 4 to 10 | Flanged | 22 | 80 | 100 | M6 | 35 | 50 | STEP | |
| 090 | 1 stage - ratios 4 to 10 | Flanged | 22 | 70 | 90 | M5 | 33 | 48 | STEP | |
| 090 | 1 stage - ratios 4 to 10 | Flanged | 22 | 73.025 | 98.43 | M5 | 27 | 42 | STEP | |
| 090 | 1 stage - ratios 4 to 10 | Flanged | 22 | 73.025 | 98.43 | M6 | 27 | 42 | STEP | |
| 090 | 1 stage - ratios 4 to 10 | Flanged | 22 | 130 | 165 | M10 | 43.5 | 58.5 | STEP | |
| 090 | 1 stage - ratios 4 to 10 | Flanged | 22 | 70 | 90 | M6 | 28 | 43 | STEP | |
| 090 | 1 stage - ratios 4 to 10 | Flanged | 22 | 70 | 90 | M6 | 28 | 43 | STEP | |
| 090 | 1 stage - ratios 4 to 10 | Flanged | 22 | 110 | 145 | M8 | 43.5 | 58.5 | STEP | |
| 090 | 1 stage - ratios 4 to 10 | Flanged | 24 | 95 | 130 | M8 | 41 | 56 | STEP | |
| 090 | 1 stage - ratios 4 to 10 | Flanged | 24 | 95 | 115 | M6 | 41 | 56 | STEP | |
| 090 | 1 stage - ratios 4 to 10 | Flanged | 24 | 95 | 115 | M8 | 41 | 56 | STEP | |
| 090 | 1 stage - ratios 4 to 10 | Flanged | 24 | 110 | 130 | M8 | 36 | 51 | STEP | |
| 090 | 1 stage - ratios 4 to 10 | Flanged | 24 | 110 | 145 | M8 | 43.5 | 58.5 | STEP | |
| 110 | 1 stage - ratios 4 to 10 | Flanged | 24 | 95 | 115 | M6 | 41 | 61 | STEP | |
| 110 | 1 stage - ratios 4 to 10 | Flanged | 24 | 95 | 115 | M8 | 41 | 61 | STEP | |
| 110 | 1 stage - ratios 4 to 10 | Flanged | 24 | 80 | 100 | M6 | 40.5 | 60.5 | STEP | |
| 110 | 1 stage - ratios 4 to 10 | Flanged | 24 | 70 | 90 | M5 | 41 | 61 | STEP | |
| 110 | 1 stage - ratios 4 to 10 | Flanged | 24 | 70 | 90 | M6 | 41 | 61 | STEP | |
| 110 | 1 stage - ratios 4 to 10 | Flanged | 24 | 110 | 130 | M8 | 49 | 69 | STEP | |
| 110 | 1 stage - ratios 4 to 10 | Flanged | 24 | 110 | 165 | M10 | 49 | 69 | STEP | |
| 110 | 1 stage - ratios 4 to 10 | Flanged | 24 | 95 | 145 | M10 | 55.5 | 75.5 | STEP | |
| 110 | 1 stage - ratios 4 to 10 | Flanged | 24 | 110 | 145 | M8 | 49 | 69 | STEP | |
| 110 | 1 stage - ratios 4 to 10 | Flanged | 28 | 130 | 165 | M10 | 49 | 69 | STEP | |
| 110 | 1 stage - ratios 4 to 10 | Flanged | 28 | 110 | 145 | M8 | 49 | 69 | STEP | |
| 110 | 1 stage - ratios 4 to 10 | Flanged | 28 | 114.3 | 200 | M12 | 60 | 80 | STEP | |
| 110 | 1 stage - ratios 4 to 10 | Flanged | 35 | 130 | 165 | M10 | 49 | 69 | STEP | |
| 110 | 1 stage - ratios 4 to 10 | Flanged | 35 | 155 | 190 | M10 | 60 | 80 | STEP | |
| 110 | 1 stage - ratios 4 to 10 | Flanged | 35 | 114.3 | 200 | M12 | 60 | 80 | STEP | |
| 140 | 1 stage - ratios 4 to 10 | Flanged | 35 | 180 | 215 | M12 | 60 | 80 | STEP | |
| 140 | 1 stage - ratios 4 to 10 | Flanged | 35 | 180 | 215 | M14 | 60 | 80 | STEP | |
| 140 | 1 stage - ratios 4 to 10 | Flanged | 35 | 110 | 130 | M10 | 60 | 80 | STEP | |
| 140 | 1 stage - ratios 4 to 10 | Flanged | 35 | 110 | 130 | M12 | 60 | 80 | STEP | |
| 140 | 1 stage - ratios 4 to 10 | Flanged | 35 | 114.3 | 200 | M12 | 60 | 80 | STEP | |
| 140 | 1 stage - ratios 4 to 10 | Flanged | 38 | 180 | 215 | M12 | 60 | 80 | STEP | |
| 140 | 1 stage - ratios 4 to 10 | Flanged | 38 | 180 | 215 | M14 | 60 | 80 | STEP | |
| 140 | 1 stage - ratios 4 to 10 | Flanged | 38 | 180 | 215 | M12 | 68 | 88 | STEP | |
| 140 | 1 stage - ratios 4 to 10 | Flanged | 42 | 180 | 215 | M12 | 60 | 80 | STEP | |
| 140 | 1 stage - ratios 4 to 10 | Flanged | 42 | 180 | 215 | M14 | 60 | 80 | STEP | |
| 140 | 1 stage - ratios 4 to 10 | Flanged | 42 | 114.3 | 200 | M12 | 105 | 125 | STEP | |
| 200 | 1 stage - ratios 4 to 10 | Flanged | 35 | 114.3 | 200 | M12 | 47 | 82 | STEP | |
| 200 | 1 stage - ratios 4 to 10 | Flanged | 35 | 130 | 165 | M10 | 49 | 84 | STEP | |
| 200 | 1 stage - ratios 4 to 10 | Flanged | 35 | 130 | 215 | M12 | 49 | 84 | STEP | |
| 200 | 1 stage - ratios 4 to 10 | Flanged | 38 | 180 | 215 | M12 | 52 | 87 | STEP | |
| 200 | 1 stage - ratios 4 to 10 | Flanged | 42 | 114.3 | 200 | M12 | 78 | 113 | STEP | |
| 200 | 1 stage - ratios 4 to 10 | Flanged | 42 | 180 | 215 | M12 | 52 | 87 | STEP | |
| 200 | 1 stage - ratios 4 to 10 | Flanged | 42 | 114.3 | 200 | M12 | 81 | 116 | STEP | |
| 200 | 1 stage - ratios 4 to 10 | Flanged | 42 | 250 | 300 | M16 | 77 | 112 | STEP | |
