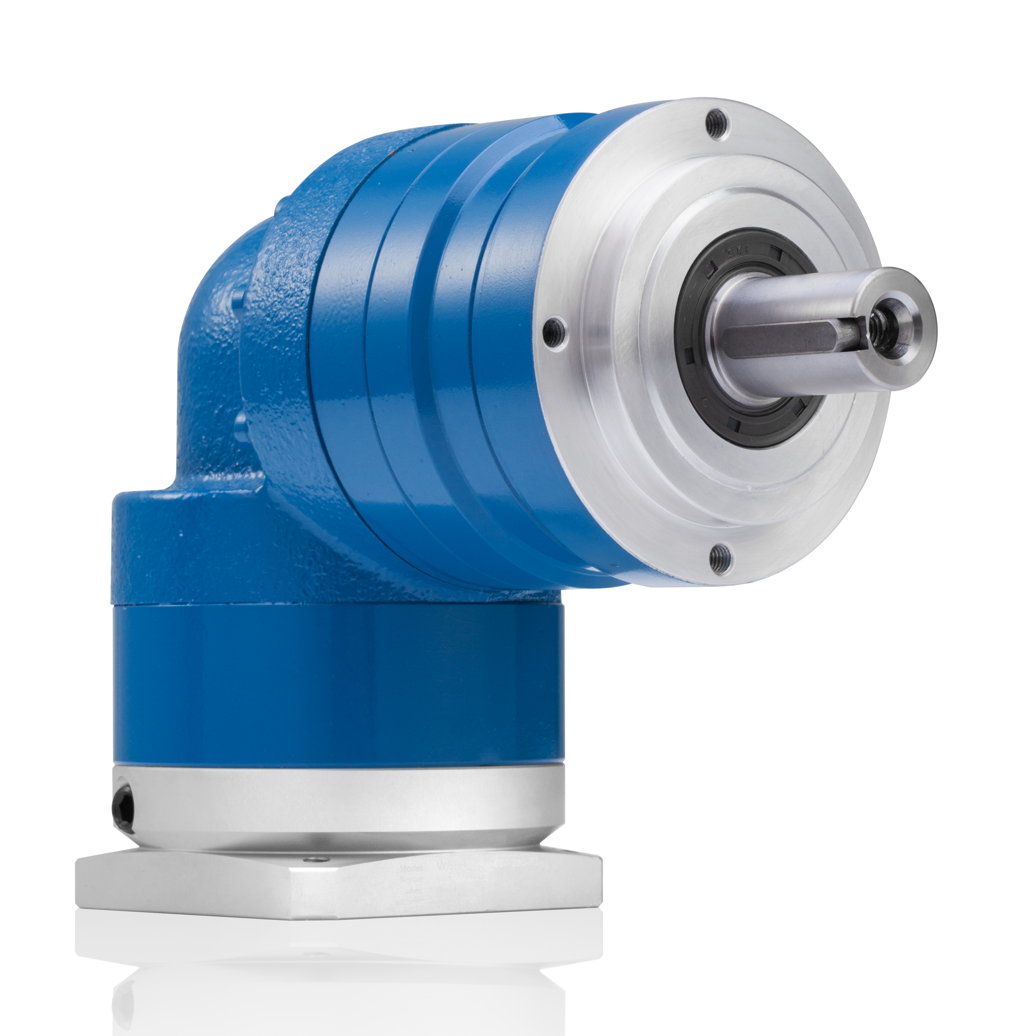

HELIKS-CI-RA

Economical, right-angle gearboxes

Acceleration

Fast reversals

Radial load

Max axial load

Stiffness

Precision

Price range

Motor connection: Servo-motor flange, coupling and bushing

Number of sizes in the line: 5

Ratios over 100:1 are possible, do not hesitate to contact us

Select your size :

Size :070 - Stage(s) : 1

TECHNICAL DATA

Ratio	3	4	5	6	7	8	9	10
Nominal torque (Nm)	18	37	29	27	24	18	16	14
Peak torque Tmax (Nm)	55	49	40	38		37	36
Emergency stop torque (Nm)	1,5 x Tmax
Max angular backlash (arc-min)	Standard : ≤8；Option : ≤5
Nominal input speed (rpm)	4000
Max input speed (rpm)	7500
Max radial load (N)	1600
Max axial load (N)	1500
Efficiency (%)	≥94
Torsional stiffness (Nm/min)	6
Lifespan (h)	20000
Min / max ambiant temperature (°C)	-15 / +45
Max temperature of the body (°C)	90
Protection class	IP 54
Noise level (dB)	≤70
Lubrication	Lifetime lubrication (grease)
Coating color	Capri blue (RAL 5019)
Input flange	Anodized aluminum
Weight	-

Inertia

Ratio		3
Diameter	24	-
	28	-
	35	-

Size :070 - Stage(s) : 2

TECHNICAL DATA

Ratio	12R	12P	15R	15P	16R	16P	20R	20P	21R	21P	25R	25P	28R	28P	30R	30P	35R	35P	40R	40P	42R	42P	49R	49P	50R	50P	60R	60P	70R	70P	80R	80P	90R	90P	100R	100P
Nominal torque (Nm)	-	18	-	18	-	37	-	37	-	18	-	29	-	37	-	27	-	29	-	37	-	27	-	24	-	29	-	27	-	24	-	18	-	16	-	14
Peak torque Tmax (Nm)	-	55	-	55	-	49	-	49	-	55	-	40	-	49	-	38	-	40	-	49	-	38	-	38	-	40	-	38	-	38	-	37	-	36	-	36
Emergency stop torque (Nm)	1,5 x Tmax
Max angular backlash (arc-min)	Standard : ≤8；Option : ≤6
Nominal input speed (rpm)	-	4000	-	4000	-	4000	-	4000	-	4000	-	4000	-	4000	-	4000	-	4000	-	4000	-	4000	-	4000	-	4000	-	4000	-	4000	-	4000	-	4000	-	4000
Max input speed (rpm)	-	7500	-	7500	-	7500	-	7500	-	7500	-	7500	-	7500	-	7500	-	7500	-	7500	-	7500	-	7500	-	7500	-	7500	-	7500	-	7500	-	7500	-	7500
Max radial load (N)	1600
Max axial load (N)	1500
Efficiency (%)	≥92
Torsional stiffness (Nm/min)	6
Lifespan (h)	20000
Min / max ambiant temperature (°C)	-15 / +45
Max temperature of the body (°C)	90
Protection class	IP 54
Noise level (dB)	≤70
Lubrication	Lifetime lubrication (grease)
Coating color	Capri blue (RAL 5019)
Input flange	Anodized aluminum
Weight	-

Inertia

Ratio		12R
Diameter	14	-
	19	-
	22	-
	24	-
	28	-
	35	-
	38	-
	42	-

Size :090 - Stage(s) : 1

TECHNICAL DATA

Ratio	3	4	5	6	7	8	9	10
Nominal torque (Nm)	70	129	100	81	71	55	47	42
Peak torque Tmax (Nm)	169	160	112	114	115	111	104	107
Emergency stop torque (Nm)	1,5 x Tmax
Max angular backlash (arc-min)	Standard : ≤8；Option : ≤5
Nominal input speed (rpm)	3100
Max input speed (rpm)	6000
Max radial load (N)	2500
Max axial load (N)	1950
Efficiency (%)	≥94
Torsional stiffness (Nm/min)	11
Lifespan (h)	20000
Min / max ambiant temperature (°C)	-15 / +45
Max temperature of the body (°C)	90
Protection class	IP 54
Noise level (dB)	≤70
Lubrication	Lifetime lubrication (grease)
Coating color	Capri blue (RAL 5019)
Input flange	Anodized aluminum
Weight	-

Inertia

Ratio		3
Diameter	24	-
	28	-
	35	-

Size :090 - Stage(s) : 2

TECHNICAL DATA

Ratio	12R	12P	15R	15P	16R	16P	20R	20P	21R	21P	25R	28R	28P	30R	35R	35P	40R	40P	42R	49R	50R	50P	60R	60P	70R	70P	80R	90R	100R
Nominal torque (Nm)	65	70	68	70	86	129	90	129	51	70	100	68	129	81	85	100	40	113	81	71	49	100	59	81	69	71	55	47	42
Peak torque Tmax (Nm)	92	169	86	169	122	160	115	160	85	169	112	113	160	114	112		109	160	114	115	112		114		115		111	104	107
Emergency stop torque (Nm)	1,5 x Tmax
Max angular backlash (arc-min)	Standard : ≤8；Option : ≤6
Nominal input speed (rpm)	3100
Max input speed (rpm)	6000
Max radial load (N)	2500
Max axial load (N)	1950
Efficiency (%)	≥92
Torsional stiffness (Nm/min)	11
Lifespan (h)	20000
Min / max ambiant temperature (°C)	-15 / +45
Max temperature of the body (°C)	90
Protection class	IP 54
Noise level (dB)	≤70
Lubrication	Lifetime lubrication (grease)
Coating color	Capri blue (RAL 5019)
Input flange	Anodized aluminum
Weight	-

Inertia

Ratio		12R
Diameter	14	-
	19	-
	22	-
	24	-
	28	-
	35	-
	38	-
	42	-

Size :120 - Stage(s) : 1

TECHNICAL DATA

Ratio	3	4	5	6	7	8	9	10
Nominal torque (Nm)	200	214	167	179	178	164	-	110
Peak torque Tmax (Nm)	378	415	300	327	279	322	-	260
Emergency stop torque (Nm)	1,5 x Tmax
Max angular backlash (arc-min)	Standard : ≤8；Option : ≤5
Nominal input speed (rpm)	2800						-	2800
Max input speed (rpm)	5500						-	5500
Max radial load (N)	5700
Max axial load (N)	3615
Efficiency (%)	≥94
Torsional stiffness (Nm/min)	26
Lifespan (h)	20000
Min / max ambiant temperature (°C)	-15 / +45
Max temperature of the body (°C)	90
Protection class	IP 54
Noise level (dB)	≤74
Lubrication	Lifetime lubrication (grease)
Coating color	Capri blue (RAL 5019)
Input flange	Anodized aluminum
Weight	-

Inertia

Ratio		3
Diameter	24	3.538
	28	3.804
	35	4.892

Size :120 - Stage(s) : 2

TECHNICAL DATA

Ratio	12R	12P	15R	15P	16R	16P	20R	20P	21R	21P	25R	28R	28P	30R	35R	40R	40P	42R	49R	50R	50P	60R	60P	70R	80R	90R	100R
Nominal torque (Nm)	200		183	200	214				137	200	167	183	214	179	167	113	214	179	178	141	167	170	179	178	164	-	110
Peak torque Tmax (Nm)	242	378	206	378	322	415	275	415	212	378	300	282	415	327	300	259	415	327	279	300		327		279	322	-	260
Emergency stop torque (Nm)	1,5 x Tmax
Max angular backlash (arc-min)	Standard : ≤8；Option : ≤6
Nominal input speed (rpm)	2800																									-	2800
Max input speed (rpm)	5500																									-	5500
Max radial load (N)	5700
Max axial load (N)	3615
Efficiency (%)	≥92
Torsional stiffness (Nm/min)	26
Lifespan (h)	20000
Min / max ambiant temperature (°C)	-15 / +45
Max temperature of the body (°C)	90
Protection class	IP 54
Noise level (dB)	≤74
Lubrication	Lifetime lubrication (grease)
Coating color	Capri blue (RAL 5019)
Input flange	Anodized aluminum
Weight	-

Inertia

Ratio		12R	12P	15R	15P	16R	16P	20R	20P	21R	25R	25P	28R	28P	30R	30P	35R	35P	40R	40P	42R	42P	49R	49P	50R	50P	60R	60P	70R	70P	80R	80P	90R	90P	100R	100P
Diameter	14	-
	19	-
	22	0.942	-	0.942	-	0.942	=E112	0.942	=E112	-	0.942	=E112	0.942	=E112	0.942	=E112	0.942	=E112	0.942	=E112	0.942	=E112	0.942	=E112	0.942	=E112	0.942	=E112	0.942	=E112	0.942	=E112	0.942	=E112	0.942	=E112
	24	0.991	-	0.991	-	0.991	-	0.991	-		0.991	-	0.991	-	0.991	-	0.991	-	0.991	-	0.991	-	0.991	-	0.991	-	0.991	-	0.991	-	0.991	-	0.991	-	0.991	-
	28	-
	35	-
	38	-
	42	-

Size :155 - Stage(s) : 1

TECHNICAL DATA

Ratio	3	4	5	6	7	8	9	10
Nominal torque (Nm)	384	407	438	440	465	408	353	308
Peak torque Tmax (Nm)	628	810	870	815	804	765	728	715
Emergency stop torque (Nm)	1,5 x Tmax
Max angular backlash (arc-min)	Standard : ≤8；Option : ≤5
Nominal input speed (rpm)	2600
Max input speed (rpm)	5000
Max radial load (N)	9000
Max axial load (N)	6000
Efficiency (%)	≥94
Torsional stiffness (Nm/min)	50
Lifespan (h)	20000
Min / max ambiant temperature (°C)	-15 / +45
Max temperature of the body (°C)	90
Protection class	IP 54
Noise level (dB)	≤78
Lubrication	Lifetime lubrication (grease)
Coating color	Capri blue (RAL 5019)
Input flange	Anodized aluminum
Weight	-

Inertia

Ratio		3
Diameter	24	-
	28	-
	35	-

Size :155 - Stage(s) : 2

TECHNICAL DATA

Ratio	12R	12P	15R	15P	16R	16P	20R	20P	21R	21P	25R	25P	28R	28P	30R	35R	35P	40R	40P	42R	49R	50R	50P	60R	60P	70R	70P	80R	90R	100R
Nominal torque (Nm)	283	384	295	384	377	407	393	407	269	384	438		359	407	440	438		218	407	440	465	273	438	327	440	382	465	408	353	308
Peak torque Tmax (Nm)	502	628	477	628	669	810	636	810	457	628	795	870	609	810	815	762	870	560	810	815	804	700	870	815		804		765	728	715
Emergency stop torque (Nm)	1,5 x Tmax
Max angular backlash (arc-min)	Standard : ≤8；Option : ≤6
Nominal input speed (rpm)	2600
Max input speed (rpm)	5000
Max radial load (N)	9000
Max axial load (N)	6000
Efficiency (%)	≥92
Torsional stiffness (Nm/min)	50
Lifespan (h)	20000
Min / max ambiant temperature (°C)	-15 / +45
Max temperature of the body (°C)	90
Protection class	IP 54
Noise level (dB)	≤78
Lubrication	Lifetime lubrication (grease)
Coating color	Capri blue (RAL 5019)
Input flange	Anodized aluminum
Weight	-

Inertia

Ratio		12R
Diameter	14	-
	19	-
	22	-
	24	-
	28	-
	35	-
	38	-
	42	-

Size : - Stage(s) : 1

TECHNICAL DATA

Ratio	3	4	5	6	7	8	9	10
Nominal torque (Nm)	384	407	438	440	465	408	353	308
Peak torque Tmax (Nm)	628	810	870	815	804	765	728	715
Emergency stop torque (Nm)	1,5 x Tmax
Max angular backlash (arc-min)	Standard : ≤8；Option : ≤5
Nominal input speed (rpm)	2600
Max input speed (rpm)	5000
Max radial load (N)	9000
Max axial load (N)	6000
Efficiency (%)	≥94
Torsional stiffness (Nm/min)	50
Lifespan (h)	20000
Min / max ambiant temperature (°C)	-15 / +45
Max temperature of the body (°C)	90
Protection class	IP 54
Noise level (dB)	≤78
Lubrication	Lifetime lubrication (grease)
Coating color	Capri blue (RAL 5019)
Input flange	Anodized aluminum
Weight	-

Inertia

Ratio		3
Diameter	24	-
	28	-
	35	-

Size : - Stage(s) : 2

TECHNICAL DATA

Ratio	12R	12P	15R	15P	16R	16P	20R	20P	21R	21P	25R	25P	28R	28P	30R	35R	35P	40R	40P	42R	49R	50R	50P	60R	60P	70R	70P	80R	90R	100R
Nominal torque (Nm)	283	384	295	384	377	407	393	407	269	384	438		359	407	440	438		218	407	440	465	273	438	327	440	382	465	408	353	308
Peak torque Tmax (Nm)	502	628	477	628	669	810	636	810	457	628	795	870	609	810	815	762	870	560	810	815	804	700	870	815		804		765	728	715
Emergency stop torque (Nm)	1,5 x Tmax
Max angular backlash (arc-min)	Standard : ≤8；Option : ≤6
Nominal input speed (rpm)	2600
Max input speed (rpm)	5000
Max radial load (N)	9000
Max axial load (N)	6000
Efficiency (%)	≥92
Torsional stiffness (Nm/min)	50
Lifespan (h)	20000
Min / max ambiant temperature (°C)	-15 / +45
Max temperature of the body (°C)	90
Protection class	IP 54
Noise level (dB)	≤78
Lubrication	Lifetime lubrication (grease)
Coating color	Capri blue (RAL 5019)
Input flange	Anodized aluminum
Weight	-

Inertia

Ratio		12R
Diameter	14	-
	19	-
	22	-
	24	-
	28	-
	35	-
	38	-
	42	-

Size :

Ratio

Output shaft type

Recommended coupling diametre

Centering diametre

PCD

Screw type

Min shaft length

Max shaft length

Size :	Ratio	Output shaft type	Recommended coupling diametre	Centering diametre	PCD	Screw type	Shaft length		2D	3D
Size :	Ratio	Output shaft type	Recommended coupling diametre	Centering diametre	PCD	Screw type	Min	Max	2D	3D
090	1 stage - ratios 3 to 10	Key	22	95	130	M8	41	56	PDF	STEP
090	1 stage - ratios 3 to 10	Key	22	50	95	M6	33	48	PDF	STEP
090	1 stage - ratios 3 to 10	Key	22	70	90	M6	33	48	PDF	STEP
090	1 stage - ratios 3 to 10	Key	22	80	100	M6	35	50	PDF	STEP
090	1 stage - ratios 3 to 10	Key	22	70	90	M5	33	48	PDF	STEP
090	1 stage - ratios 3 to 10	Key	22	130	165	M10	43.5	58.5	PDF	STEP
090	1 stage - ratios 3 to 10	Key	22	70	90	M6	28	43	PDF	STEP
090	1 stage - ratios 3 to 10	Key	22	70	90	M6	28	43	PDF	STEP
090	1 stage - ratios 3 to 10	Key	22	110	145	M8	43.5	58.5	PDF	STEP
090	1 stage - ratios 3 to 10	Key	24	95	115	M6	41	56	PDF	STEP
090	1 stage - ratios 3 to 10	Key	24	95	115	M8	41	56	PDF	STEP
090	1 stage - ratios 3 to 10	Key	24	110	130	M8	36	51	PDF	STEP
090	1 stage - ratios 3 to 10	Key	24	73.025	98.43	M5	27	42	PDF	STEP
090	1 stage - ratios 3 to 10	Key	24	73.025	98.43	M6	27	42	PDF	STEP
