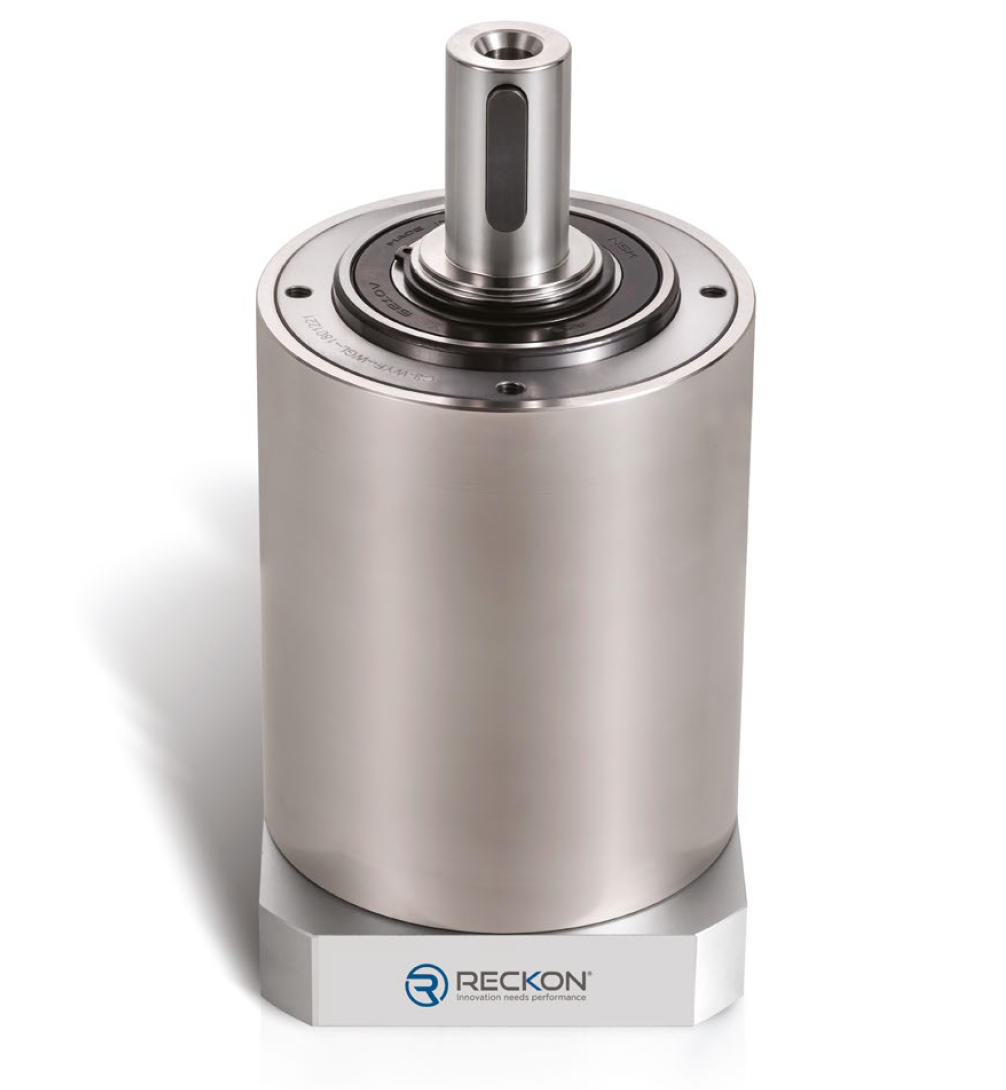

ACCESS-FI-CI-ST
Stainless steel, spur lines
- Acceleration
- Fast reversals
- Radial load
- Max axial load
- Stiffness
- Precision
- Price range
- Motor connection
- Servo-motor flange, coupling and bushing
- Number of sizes in the line
- 4
Ratios over 100:1 are possible, do not hesitate to contact us
Size :050 - 1 stage
TECHNICAL DATA
| Ratio | 4 | 5 | 7 | 10 |
|---|---|---|---|---|
| Nominal torque T2n (Nm) | 11 | 9 | 7 | 5 |
| Peak torque Tmax (Nm) | 19 | 14 | 13 | |
| Emergency stop torque (Nm) | 1,5 x Tmax | |||
| Max angular backlash (arc-min) | ≤10 | |||
| Nominal input speed (rpm) | 4000 | |||
| Max input speed (rpm) | 10000 | |||
| Max radial load (N) | 800 | |||
| Max axial load (N) | 700 | |||
| Efficiency (%) | ≥97 | |||
| Torsional stiffness (Nm/min) | 1 | |||
| Lifespan (h) | 20000 | |||
| Min / max ambiant temperature (°C) | -30 / +45 | |||
| Max temperature of the body (°C) | 90 | |||
| Protection class | IP 54 | |||
| Noise level (dB) | ≤62 | |||
| Lubrication | Lifetime lubrication (grease) | |||
| Coating color | Unpainted (316L) | |||
| Input flange | Anodized aluminum | |||
| Weight | - | |||
Inertia (kg.cm²)
| Ratio | 4 | 5 | 7 | 10 | |
|---|---|---|---|---|---|
| Input Diameter | 8 | 0.022 | 0.021 | 0.166 | |
| 14 | 0.038 | 0.037 | 0.176 | ||
Size :050 - 2 stages
TECHNICAL DATA
| Ratio | 16P | 20P | 25P | 28P | 35P | 40P | 49P | 50P | 70P | 100P |
|---|---|---|---|---|---|---|---|---|---|---|
| Nominal torque T2n (Nm) | 11 | 9 | 11 | 9 | 11 | 7 | 9 | 7 | 5 | |
| Peak torque Tmax (Nm) | 19 | 14 | 19 | 14 | 19 | 14 | 13 | |||
| Emergency stop torque (Nm) | 1,5 x Tmax | |||||||||
| Max angular backlash (arc-min) | ≤13 | |||||||||
| Nominal input speed (rpm) | 4000 | |||||||||
| Max input speed (rpm) | 10000 | |||||||||
| Max radial load (N) | 800 | |||||||||
| Max axial load (N) | 700 | |||||||||
| Efficiency (%) | ≥94 | |||||||||
| Torsional stiffness (Nm/min) | 1 | |||||||||
| Lifespan (h) | 20000 | |||||||||
| Min / max ambiant temperature (°C) | -30 / +45 | |||||||||
| Max temperature of the body (°C) | 90 | |||||||||
| Protection class | IP 54 | |||||||||
| Noise level (dB) | ≤62 | |||||||||
| Lubrication | Lifetime lubrication (grease) | |||||||||
| Coating color | Unpainted (316L) | |||||||||
| Input flange | Anodized aluminum | |||||||||
| Weight | - | |||||||||
Inertia (kg.cm²)
| Ratio | 16P | 20P | 25P | 28P | 35P | 40P | 49P | 50P | 70P | 100P | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Input Diameter | 8 | 0.022 | 0.021 | 0.166 | 0.021 | 0.166 | |||||
| 14 | 0.038 | 0.037 | 0.176 | 0.037 | 0.176 | ||||||
Size :070 - 1 stage
TECHNICAL DATA
| Ratio | 3 | 4 | 5 | 7 | 10 |
|---|---|---|---|---|---|
| Nominal torque T2n (Nm) | 29 | 30 | 24 | 22 | 15 |
| Peak torque Tmax (Nm) | 57 | 61 | 47 | 46 | 43 |
| Emergency stop torque (Nm) | 1,5 x Tmax | ||||
| Max angular backlash (arc-min) | ≤8 | ||||
| Nominal input speed (rpm) | 3700 | ||||
| Max input speed (rpm) | 8000 | ||||
| Max radial load (N) | 1700 | ||||
| Max axial load (N) | 1550 | ||||
| Efficiency (%) | ≥97 | ||||
| Torsional stiffness (Nm/min) | 4 | ||||
| Lifespan (h) | 20000 | ||||
| Min / max ambiant temperature (°C) | -30 / +45 | ||||
| Max temperature of the body (°C) | 90 | ||||
| Protection class | IP 54 | ||||
| Noise level (dB) | ≤64 | ||||
| Lubrication | Lifetime lubrication (grease) | ||||
| Coating color | Unpainted (316L) | ||||
| Input flange | Anodized aluminum | ||||
| Weight | - | ||||
Inertia (kg.cm²)
| Ratio | 3 | 4 | 5 | 7 | 10 | |
|---|---|---|---|---|---|---|
| Input Diameter | 14 | 0.145 | 0.122 | 0.117 | 0.115 | |
| 19 | 0.202 | 0.179 | 0.174 | 0.172 | ||
Size :070 - 2 stages
TECHNICAL DATA
| Ratio | 12P | 15P | 16P | 20P | 21P | 25P | 28P | 30P | 35P | 40P | 49P | 50P | 70P | 100P |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Nominal torque T2n (Nm) | 29 | 30 | 29 | 24 | 30 | 29 | 24 | 30 | 22 | 24 | 22 | 15 | ||
| Peak torque Tmax (Nm) | 57 | 61 | 57 | 47 | 61 | 57 | 47 | 61 | 46 | 47 | 46 | 43 | ||
| Emergency stop torque (Nm) | 1,5 x Tmax | |||||||||||||
| Max angular backlash (arc-min) | ≤10 | |||||||||||||
| Nominal input speed (rpm) | 3700 | |||||||||||||
| Max input speed (rpm) | 8000 | |||||||||||||
| Max radial load (N) | 1700 | |||||||||||||
| Max axial load (N) | 1550 | |||||||||||||
| Efficiency (%) | ≥94 | |||||||||||||
| Torsional stiffness (Nm/min) | 4 | |||||||||||||
| Lifespan (h) | 20000 | |||||||||||||
| Min / max ambiant temperature (°C) | -30 / +45 | |||||||||||||
| Max temperature of the body (°C) | 90 | |||||||||||||
| Protection class | IP 54 | |||||||||||||
| Noise level (dB) | ≤64 | |||||||||||||
| Lubrication | Lifetime lubrication (grease) | |||||||||||||
| Coating color | Unpainted (316L) | |||||||||||||
| Input flange | Anodized aluminum | |||||||||||||
| Weight | - | |||||||||||||
Inertia (kg.cm²)
| Ratio | 12P | 15P | 16P | 20P | 21P | 25P | 28P | 30P | 35P | 40P | 49P | 50P | 70P | 100P | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Input Diameter | 14 | 0.122 | 0.117 | 0.122 | 0.117 | 0.115 | 0.117 | 0.115 | |||||||
| 19 | 0.179 | 0.174 | 0.179 | 0.174 | 0.172 | 0.174 | 0.172 | ||||||||
Size :090 - 1 stage
TECHNICAL DATA
| Ratio | 3 | 4 | 5 | 7 | 10 |
|---|---|---|---|---|---|
| Nominal torque T2n (Nm) | 54 | 105 | 81 | 66 | 45 |
| Peak torque Tmax (Nm) | 107 | 184 | 130 | 128 | 116 |
| Emergency stop torque (Nm) | 1,5 x Tmax | ||||
| Max angular backlash (arc-min) | ≤7 | ||||
| Nominal input speed (rpm) | 3500 | ||||
| Max input speed (rpm) | 7000 | ||||
| Max radial load (N) | 2800 | ||||
| Max axial load (N) | 1900 | ||||
| Efficiency (%) | ≥97 | ||||
| Torsional stiffness (Nm/min) | 13 | ||||
| Lifespan (h) | 20000 | ||||
| Min / max ambiant temperature (°C) | -30 / +45 | ||||
| Max temperature of the body (°C) | 90 | ||||
| Protection class | IP 54 | ||||
| Noise level (dB) | ≤66 | ||||
| Lubrication | Lifetime lubrication (grease) | ||||
| Coating color | Unpainted (316L) | ||||
| Input flange | Anodized aluminum | ||||
| Weight | - | ||||
Inertia (kg.cm²)
| Ratio | 3 | 4 | 5 | 7 | 10 | |
|---|---|---|---|---|---|---|
| Input Diameter | 22 | 0.693 | 0.581 | 0.563 | 0.554 | 0.624 |
| 24 | 0.734 | 0.623 | 0.604 | 0.595 | 0.594 | |
Size :090 - 2 stages
TECHNICAL DATA
| Ratio | 12P | 15P | 16P | 20P | 21P | 25P | 28P | 30P | 35P | 40P | 49P | 50P | 70P | 100P |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Nominal torque T2n (Nm) | 54 | 105 | 54 | 81 | 105 | 54 | 81 | 105 | 66 | 81 | 66 | 45 | ||
| Peak torque Tmax (Nm) | 107 | 184 | 107 | 130 | 184 | 107 | 130 | 184 | 128 | 130 | 128 | 116 | ||
| Emergency stop torque (Nm) | 1,5 x Tmax | |||||||||||||
| Max angular backlash (arc-min) | ≤9 | |||||||||||||
| Nominal input speed (rpm) | 3500 | |||||||||||||
| Max input speed (rpm) | 7000 | |||||||||||||
| Max radial load (N) | 2800 | |||||||||||||
| Max axial load (N) | 1900 | |||||||||||||
| Efficiency (%) | ≥94 | |||||||||||||
| Torsional stiffness (Nm/min) | 13 | |||||||||||||
| Lifespan (h) | 20000 | |||||||||||||
| Min / max ambiant temperature (°C) | -30 / +45 | |||||||||||||
| Max temperature of the body (°C) | 90 | |||||||||||||
| Protection class | IP 54 | |||||||||||||
| Noise level (dB) | ≤66 | |||||||||||||
| Lubrication | Lifetime lubrication (grease) | |||||||||||||
| Coating color | Unpainted (316L) | |||||||||||||
| Input flange | Anodized aluminum | |||||||||||||
| Weight | - | |||||||||||||
Inertia (kg.cm²)
| Ratio | 12P | 15P | 16P | 20P | 21P | 25P | 28P | 30P | 35P | 40P | 49P | 50P | 70P | 100P | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Input Diameter | 22 | 0.581 | 0.563 | 0.581 | 0.563 | 0.554 | 0.563 | 0.554 | 0.624 | 0.554 | 0.624 | 0.554 | 0.624 | ||
| 24 | 0.623 | 0.604 | 0.623 | 0.604 | 0.595 | 0.604 | 0.595 | 0.594 | 0.595 | 0.594 | 0.595 | 0.594 | |||
Size :120 - 1 stage
TECHNICAL DATA
| Ratio | 3 | 4 | 5 | 7 | 10 |
|---|---|---|---|---|---|
| Nominal torque T2n (Nm) | 170 | 205 | 160 | 153 | 102 |
| Peak torque Tmax (Nm) | 338 | 361 | 300 | 292 | 260 |
| Emergency stop torque (Nm) | 1,5 x Tmax | ||||
| Max angular backlash (arc-min) | ≤7 | ||||
| Nominal input speed (rpm) | 2700 | ||||
| Max input speed (rpm) | 6000 | ||||
| Max radial load (N) | 5000 | ||||
| Max axial load (N) | 4000 | ||||
| Efficiency (%) | ≥97 | ||||
| Torsional stiffness (Nm/min) | 33 | ||||
| Lifespan (h) | 20000 | ||||
| Min / max ambiant temperature (°C) | -30 / +45 | ||||
| Max temperature of the body (°C) | 90 | ||||
| Protection class | IP 54 | ||||
| Noise level (dB) | ≤68 | ||||
| Lubrication | Lifetime lubrication (grease) | ||||
| Coating color | Unpainted (316L) | ||||
| Input flange | Anodized aluminum | ||||
| Weight | - | ||||
Inertia (kg.cm²)
| Ratio | 3 | 4 | 5 | 7 | 10 | |
|---|---|---|---|---|---|---|
| Input Diameter | 24 | 2.546 | 2.112 | 2.038 | 2.003 | 1.996 |
| 28 | 2.901 | 2.467 | 2.393 | 2.358 | 2.351 | |
| 35 | 4.137 | 3.704 | 3.63 | 3.595 | 3.587 | |
Size :120 - 2 stages
TECHNICAL DATA
| Ratio | 12P | 15P | 16P | 20P | 21P | 25P | 28P | 30P | 35P | 40P | 49P | 50P | 70P | 100P |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Nominal torque T2n (Nm) | 170 | 205 | 170 | 160 | 205 | 170 | 160 | 205 | 153 | 160 | 153 | 102 | ||
| Peak torque Tmax (Nm) | 338 | 361 | 338 | 300 | 361 | 338 | 300 | 361 | 292 | 300 | 292 | 260 | ||
| Emergency stop torque (Nm) | 1,5 x Tmax | |||||||||||||
| Max angular backlash (arc-min) | ≤9 | |||||||||||||
| Nominal input speed (rpm) | 2700 | |||||||||||||
| Max input speed (rpm) | 6000 | |||||||||||||
| Max radial load (N) | 5000 | |||||||||||||
| Max axial load (N) | 4000 | |||||||||||||
| Efficiency (%) | ≥94 | |||||||||||||
| Torsional stiffness (Nm/min) | 33 | |||||||||||||
| Lifespan (h) | 20000 | |||||||||||||
| Min / max ambiant temperature (°C) | -30 / +45 | |||||||||||||
| Max temperature of the body (°C) | 90 | |||||||||||||
| Protection class | IP 54 | |||||||||||||
| Noise level (dB) | ≤68 | |||||||||||||
| Lubrication | Lifetime lubrication (grease) | |||||||||||||
| Coating color | Unpainted (316L) | |||||||||||||
| Input flange | Anodized aluminum | |||||||||||||
| Weight | - | |||||||||||||
Inertia (kg.cm²)
| Ratio | 12P | 15P | 16P | 20P | 21P | 25P | 28P | 30P | 35P | 40P | 49P | 50P | 70P | 100P | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Input Diameter | 24 | 2.112 | 2.038 | 2.112 | 2.038 | 2.003 | 2.038 | 2.003 | 1.996 | 2.003 | 1.996 | 2.003 | 1.996 | ||
| 28 | 2.467 | 2.393 | 2.467 | 2.393 | 2.358 | 2.393 | 2.358 | 2.351 | 2.358 | 2.351 | 2.358 | 2.351 | |||
| 35 | 3.704 | 3.63 | 3.704 | 3.63 | 3.595 | 3.63 | 3.595 | 3.587 | 3.595 | 3.587 | 3.595 | 3.587 | - | ||
Contact us to get the drawings
