SAU9

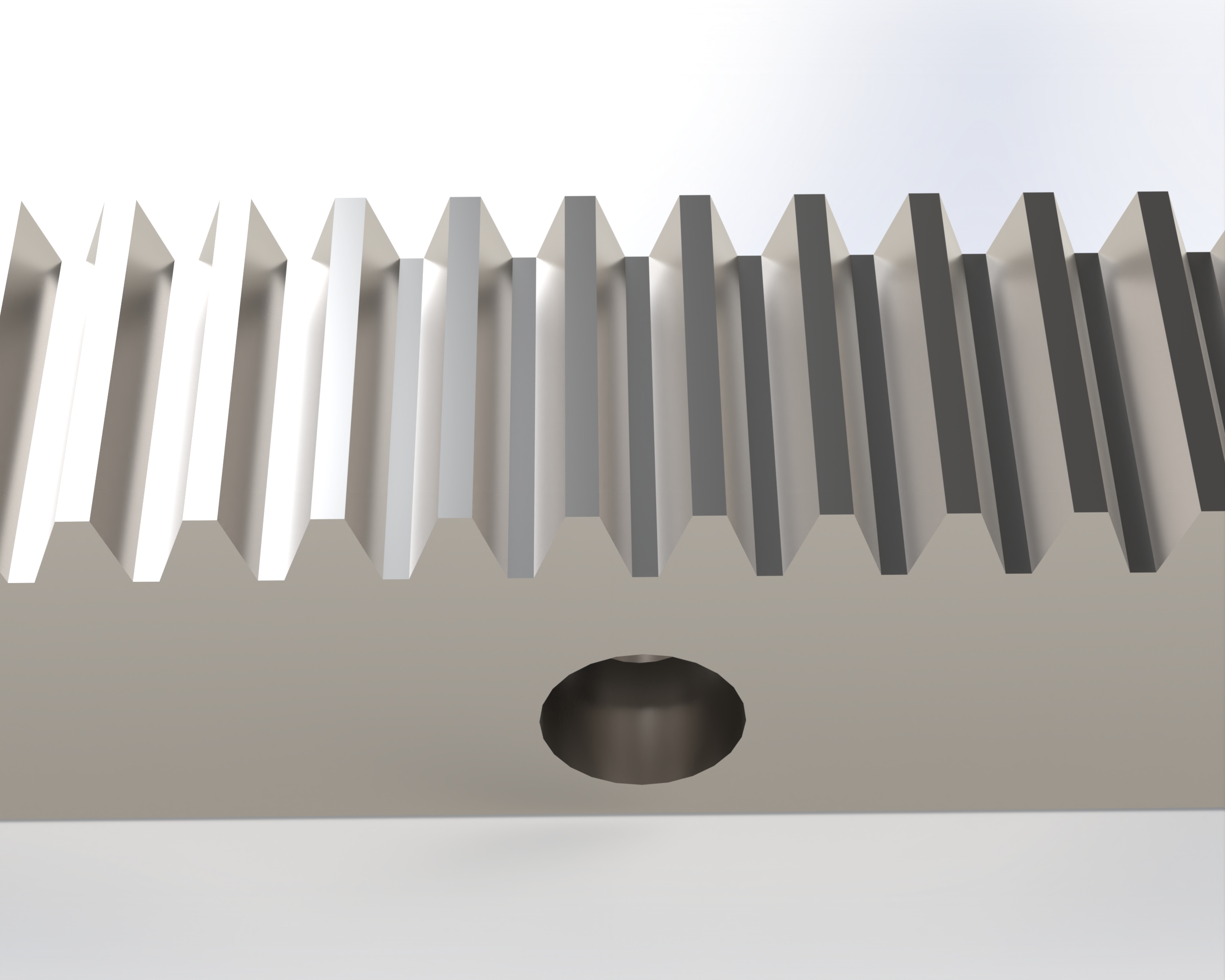

Soft racks - cut finish - straight
- Steel
- C45
- Heat Treatment
- -
- Surface hardness
- <12 HRC
- Precision class
- DIN 9
- Teeth
- Milled
- Sides
- Milled
- Bottom
- Milled
Contact us if you can't find the right plan
Filter results
Reset
|
Reference
|
M(1)
|
L
|
Z(2)
|
A
|
B
|
B0
|
C
|
D
|
H(3)
|
B1
|
G1
|
G2
|
F
|
C0
|
E
|
G3
|
CPE(4)
|
2D | 3D |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M2-SAU9-1000-H0-000 | 2 | 999.03 | 159 | 20 | 20 | 18 | - | - | - | - | - | - | - | - | - | - | 0.09 | STEP | |
| M2-SAU9-1500-H0-000 | 2 | 1507.96 | 240 | 20 | 20 | 18 | - | - | - | - | - | - | - | - | - | - | 0.086 | STEP | |
| M2-SAU9-2000-H0-000 | 2 | 1998.05 | 318 | 20 | 20 | 18 | - | - | - | - | - | - | - | - | - | - | 0.086 | STEP | |
| M2-SAU9-250-H0-000 | 2 | 251.33 | 40 | 20 | 20 | 18 | - | - | - | - | - | - | - | - | - | - | - | STEP | |
| M2-SAU9-500-H0-000 | 2 | 502.65 | 80 | 20 | 20 | 18 | - | - | - | - | - | - | - | - | - | - | 0.08 | STEP | |
| M3-SAU9-1000-H0-000 | 3 | 1017.88 | 108 | 30 | 30 | 27 | - | - | - | - | - | - | - | - | - | - | 0.1 | STEP | |
| M3-SAU9-1500-H0-000 | 3 | 1526.81 | 162 | 30 | 30 | 27 | - | - | - | - | - | - | - | - | - | - | 0.1 | STEP | |
| M3-SAU9-2000-H0-000 | 3 | 2035.75 | 216 | 30 | 30 | 27 | - | - | - | - | - | - | - | - | - | - | 0.11 | STEP | |
| M3-SAU9-250-H0-000 | 3 | 254.47 | 27 | 30 | 30 | 27 | - | - | - | - | - | - | - | - | - | - | - | STEP | |
| M3-SAU9-500-H0-000 | 3 | 508.94 | 54 | 30 | 30 | 27 | - | - | - | - | - | - | - | - | - | - | 0.09 | STEP | |
| M4-SAU9-1000-H0-000 | 4 | 1005.31 | 80 | 40 | 40 | 36 | - | - | - | - | - | - | - | - | - | - | 0.11 | STEP | |
| M4-SAU9-1500-H0-000 | 4 | 1507.96 | 120 | 40 | 40 | 36 | - | - | - | - | - | - | - | - | - | - | 0.11 | STEP | |
| M4-SAU9-2000-H0-000 | 4 | 2010.62 | 160 | 40 | 40 | 36 | - | - | - | - | - | - | - | - | - | - | 0.125 | STEP | |
| M4-SAU9-250-H0-000 | 4 | 251.33 | 20 | 40 | 40 | 36 | - | - | - | - | - | - | - | - | - | - | - | STEP | |
| M4-SAU9-500-H0-000 | 4 | 502.65 | 40 | 40 | 40 | 36 | - | - | - | - | - | - | - | - | - | - | 0.09 | STEP | |
| M5-SAU9-1000-H0-000 | 5 | 1005.31 | 64 | 50 | 40 | 35 | - | - | - | - | - | - | - | - | - | - | 0.11 | STEP | |
| M5-SAU9-1500-H0-000 | 5 | 1507.96 | 96 | 50 | 40 | 35 | - | - | - | - | - | - | - | - | - | - | 0.11 | STEP | |
| M5-SAU9-2000-H0-000 | 5 | 2010.62 | 128 | 50 | 40 | 35 | - | - | - | - | - | - | - | - | - | - | 0.125 | STEP | |
| M5-SAU9-250-H0-000 | 5 | 251.33 | 16 | 50 | 40 | 35 | - | - | - | - | - | - | - | - | - | - | - | STEP | |
| M5-SAU9-500-H0-000 | 5 | 502.65 | 32 | 50 | 40 | 35 | - | - | - | - | - | - | - | - | - | - | 0.09 | STEP | |
| M6-SAU9-1000-H0-000 | 6 | 1017.88 | 54 | 60 | 50 | 44 | - | - | - | - | - | - | - | - | - | - | 0.11 | STEP | |
| M6-SAU9-2000-H0-000 | 6 | 2035.75 | 54 | 60 | 50 | 44 | - | - | - | - | - | - | - | - | - | - | 0.125 | STEP | |
| M6-SAU9-500-H0-000 | 6 | 508.94 | 27 | 60 | 50 | 44 | - | - | - | - | - | - | - | - | - | - | 0.09 | STEP | |
| M8-SAU9-1000-H0-000 | 8 | 1005.31 | 40 | 80 | 79.5 | 71.5 | - | - | - | - | - | - | - | - | - | - | 0.11 | STEP | |
| M8-SAU9-2000-H0-000 | 8 | 2010.62 | 80 | 80 | 79.5 | 71.5 | - | - | - | - | - | - | - | - | - | - | 0.125 | STEP |
