PHFC6

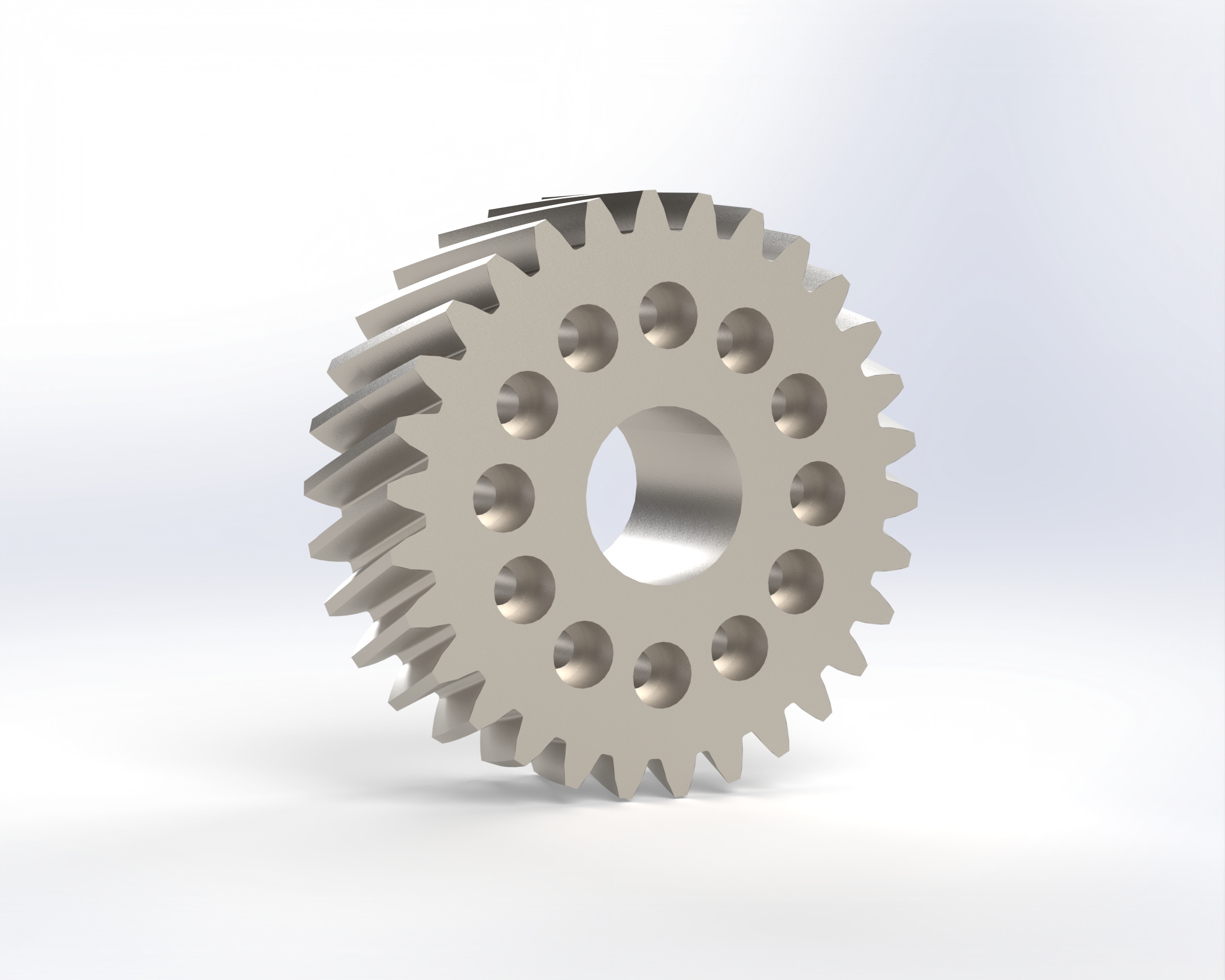

Pinions for direct mount on flange-type gearboxes
Carburized and quenched pinion in 20CrMnTi steel.
Designed for a perfect fit on our Ultimate and Spirit planetary gearboxes.
- Steel
- 20CrMnTi
- Heat Treatment
- Carburized and quenched
- Surface hardness
- 58-62 HRC
- Precision class
- DIN 6
- Teeth
- Helical - ground
Contact us if you can't find the right plan
Filter results
Reset
|
Reference
|
Fig
|
M
|
Z
|
x
|
d0
|
d
|
da
|
d1
|
d2
|
d3
|
d4
|
d5
|
b1
|
b2
|
b3
|
ISO
|
L
|
dN k6
|
2D | 3D |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PHFC6-A-M2-Z26-000 | A | 2 | 26 | 0.4065 | 55.17 | 56.80 | 60.80 | 15 | 31.5 | 5.5 | 10 | 20.0 | 26 | 29.0 | 12 | 9409-1-A-31.5 | 173.33 | - | STEP | |
| PHFC6-A-M2-Z27-000 | A | 2 | 27 | 0 | 57.30 | 57.30 | 61.29 | 15 | 31.5 | 5.5 | 10 | 20.0 | 30 | 33.5 | 11 | 9409-1-A-31.5 | 180.00 | - | STEP | |
| PHFC6-A-M2-Z29-000 | A | 2 | 29 | 0.4150 | 61.54 | 63.20 | 67.20 | 15 | 31.5 | 5.5 | 10 | 20.0 | 26 | 29.0 | 12 | 9409-1-A-31.5 | 193.33 | - | STEP | |
| PHFC6-A-M2-Z33-000 | A | 2 | 33 | 0.3928 | 70.03 | 71.60 | 75.60 | 20 | 50 | 6.6 | 11 | 31.5 | 26 | 30.0 | 14 | 9409-1-A-50 | 220.00 | - | STEP | |
| PHFC6-A-M2-Z35-000 | A | 2 | 35 | 0.3819 | 74.27 | 75.80 | 79.80 | 15 | 31.5 | 5.5 | 10 | 20.0 | 26 | 29.0 | 12 | 9409-1-A-31.5 | 233.33 | - | STEP | |
| PHFC6-A-M2-Z36-000 | A | 2 | 36 | 0 | 76.40 | 76.40 | 80.39 | 20 | 50 | 6.6 | 11 | 31.5 | 30 | 34.0 | 8 | 9409-1-A-50 | 240.00 | - | STEP | |
| PHFC6-A-M2-Z37-000 | A | 2 | 37 | 0.4209 | 78.52 | 80.20 | 84.20 | 20 | 50 | 6.6 | 11 | 31.5 | 26 | 30.0 | 14 | 9409-1-A-50 | 246.67 | - | STEP | |
| PHFC6-A-M3-Z31-000 | A | 3 | 31 | 0.3540 | 98.68 | 100.80 | 106.80 | 20 | 50 | 6.6 | 11 | 31.5 | 31 | 35.5 | 9 | 9409-1-A-50 | 310.00 | - | STEP | |
| PHFC6-B-M3-Z35-000 | B | 3 | 35 | 0.3652 | - | 113.60 | 119.60 | 40 | 80 | 9 | 15 | 50 | 31 | 35.0 | 11 | 9409-1-A-80 | 350.00 | - | STEP | |
| PHFC6-B-M3-Z40-000 | B | 3 | 40 | 0.3792 | - | 129.60 | 135.60 | 40 | 80 | 9 | 15 | 50 | 31 | 35.0 | 11 | 9409-1-A-80 | 400.00 | - | STEP | |
| PHFC6-B-M4-Z30-000 | B | 4 | 30 | 0 | - | 127.32 | 135.32 | 40 | 80 | 9 | 15 | 50 | 45 | 49.0 | 11 | 9409-1-A-80 | 400.00 | - | STEP | |
| PHFC6-B-M5-Z21-000 | B | 5 | 21 | 0 | - | 111.40 | 121.40 | 40 | 80 | 9 | – | 50 | 59 | 64.5 | – | 9409-1-A-80 | 350.00 | - | STEP | |
| PHFC6-B-M5-Z36-000 | B | 5 | 36 | 0 | - | 190.99 | 200.98 | 60 | 125 | 11 | 18 | 80 | 55 | 61.0 | 13 | 9409-1-A-125 | 600.00 | - | STEP | |
| PHFC6-C-M2-Z40-000 | C | 2 | 40 | 0.3792 | 84.88 | 86.40 | 90.40 | 31.5 | 63 | 6.6 | 11 | 40.0 | 26 | 30 | 14 | 9409-1-A-63 | 266.69 | - | STEP | |
| PHFC6-C-M2-Z45-000 | C | 2 | 45 | 0.3267 | - | 96.80 | 100.80 | 31.5 | 63 | 6.6 | 11 | 40.0 | 26 | 30 | 14 | 9409-1-A-63 | 300.00 | - | STEP | |
| PHFC6-C-M3-Z30-000 | C | 3 | 30 | 0 | 95.49 | 95.49 | 101.49 | 20.0 | 63 | 6.6 | 11 | 40.0 | 35 | 39 | 10 | 9409-1-A-63 | 300.00 | - | STEP |
