HAQ9

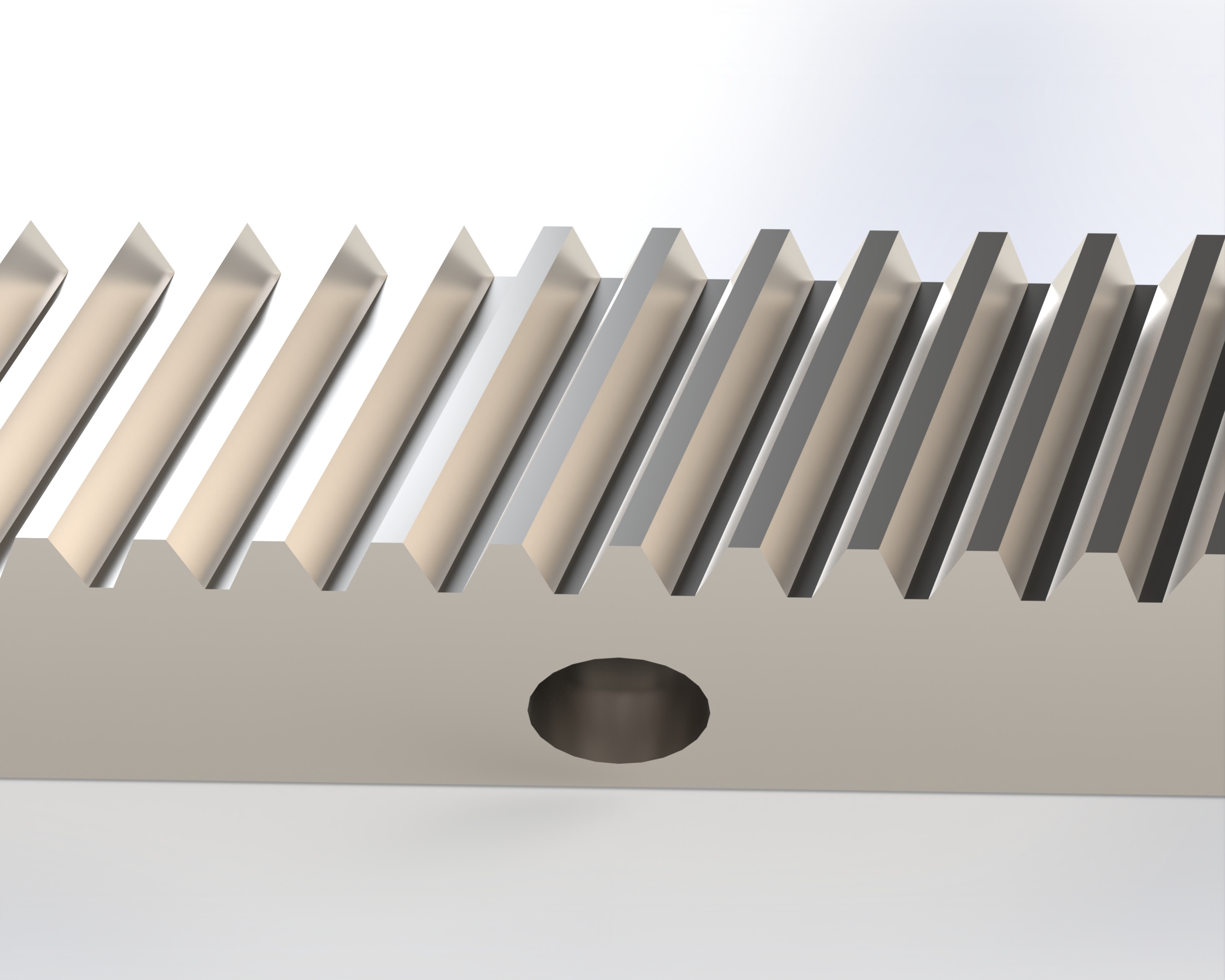

Quenched racks - cut finish - helical
- Steel
- C45
- Heat Treatment
- Quench
- Surface hardness
- >15 HRC
- Precision class
- DIN 9
- Teeth
- Helical - ground
- Sides
- Milled
- Bottom
- Milled
Contact us if you can't find the right plan
Filter results
Reset
|
Reference
|
M(1)
|
L
|
L2
|
Z(2)
|
A
|
B
|
B0
|
C
|
D
|
H(3)
|
B1
|
G1
|
G2
|
F
|
C0
|
E
|
G3
|
CPE(4)
|
2D | 3D |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M2-HAQ9-1000-H1-000 | 2 | 1000.00 | 8.87 | 150 | 25 | 24 | 22 | 62.50 | 125 | 8 | 8 | 7 | 11 | 7 | 31.7 | 936.6 | 5.7 | 0.09 | STEP | |
| M2-HAQ9-500-H1-000 | 2 | 500.00 | 8.87 | 75 | 25 | 24 | 22 | 62.50 | 125 | 4 | 8 | 7 | 11 | 7 | 31.7 | 436.6 | 5.7 | 0.08 | STEP | |
| M3-HAQ9-1000-H1-000 | 3 | 1000.00 | 10.64 | 100 | 30 | 29 | 26 | 62.50 | 125 | 8 | 9 | 10 | 15 | 9 | 35.0 | 930.0 | 7.7 | 0.1 | STEP | |
| M3-HAQ9-500-H1-000 | 3 | 500.00 | 10.64 | 50 | 30 | 29 | 26 | 62.50 | 125 | 4 | 9 | 10 | 15 | 9 | 35.0 | 430.0 | 7.7 | 0.09 | STEP | |
| M4-HAQ9-1000-H1-000 | 4 | 1000.00 | 14.2 | 75 | 40 | 39 | 35 | 62.50 | 125 | 8 | 12 | 10 | 15 | 9 | 33.3 | 933.4 | 7.7 | 0.11 | STEP | |
| M4-HAQ9-500-H1-000 | 4 | 506.67 | 14.2 | 38 | 40 | 39 | 35 | 62.50 | 125 | 4 | 12 | 10 | 15 | 9 | 33.3 | 433.0 | 7.7 | 0.09 | STEP |
