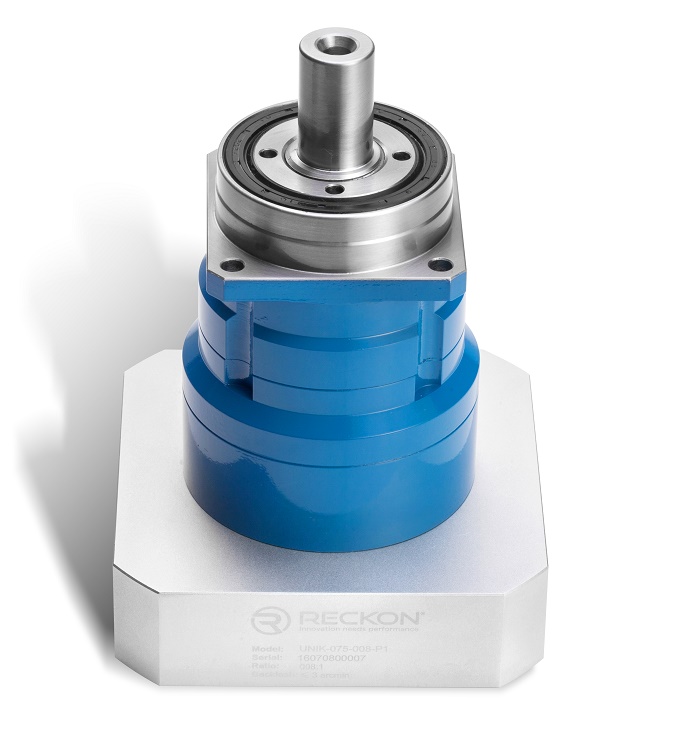

X-TREME-SQ-RA

HIGH ACCELERATION CAPACITY, IN HIGH RADIAL AND AXIAL LOAD APPLICATIONS

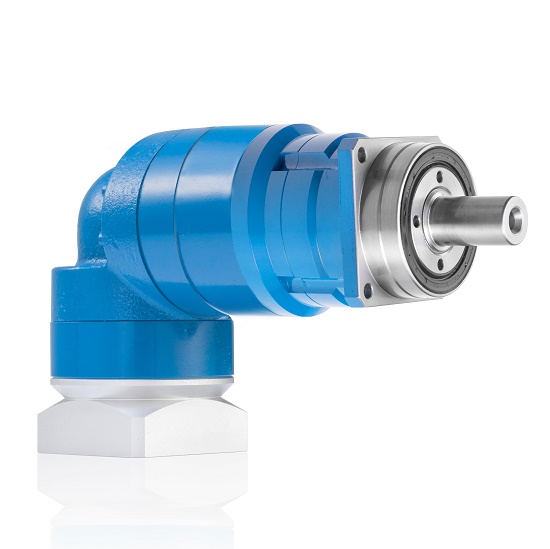

X-Treme RA is a right-angle, low-backlash planetary gearbox. It was designed for quiet, dynamic applications with important efforts on the shaft, like heavy-duty racks and pinions, or belts.

Acceleration capacity +++
Fast reversals +++
Radial load rating +++
Axial load rating +++
Stiffness ++
Precision ++++
Economy ++
Suitable to servomotor applications YES
Number of sizes in this line 6 (60 to 210)
Standard angular backlash <3' or <5'
Optional, low angular backlash <1' or <2'
Available ratios 3 to 100
Motor shaft connection Balanced coupling

Télécharger le pdf

INTERNAL CONSTRUCTION

  • X-Treme RA is a right-angle, helical, low-backlash planetary gearbox. The planet carrier is a cage, to provide stiffness and acceleration capacity. It is monobloc with the output shaft.

  • The shaft is strongly supported by tapered-roller bearings, to provide very high axial and radial loads acceptance.

  • The planetary ring is monobloc (belongs to the housing), to reinforce stiffness.

  • This construction improves acceleration capacity and acceptance of frequent reversals.

  • We recommend this line for applications using application factor Ka<1.6 (refer to the information section for more details about application factors).

Orthogonal planetary gearbox

  • The right-angle transmission is handled by carburized and quenched, spiral-bevel gears made of premium steel, to offer long-lasting precision and acceptance of high fluctuations of torque or fast reversals.

  • The motor shaft connection is a balanced coupling, so the efforts on your motor bearings are minimal.

  • Installation is fast and easy thanks to a 1-screw lock to your motor shaft.

  • The input flange features weight reduction.

  • The gearbox will be delivered with the adapting flange corresponding to your motor.

FEATURES

HIGH ACCELERATION CAPACITY, HIGH ADMISSIBLE LOADS ON SHAFT

The planet carrier is a massive monobloc cage, designed to increase torsional stiffness and allow strong acceleration.

It is strongly supported by 2 tapered roller-bearings. This design is adapted to medium to strong acceleration with very high efforts on the output shaft.

LONG-LASTING PRECISION

High-precision planet gears in carburized and quenched steel allow high torque density and strong accelerations, year after year, without loss of precision.

They are supported by large, carburized needles (bearings without cages), in order to maximize torque capacity and lifetime.

FORGED, MONOBLOC RING GEAR

Ring gear belongs to the housing, to increase stiffness compared to the X-treme range.

SAFETY FOR YOUR MOTOR SHAFT BEARINGS

The X-treme range features a standard, balanced coupling with a press-fitted pinion, to limit radial efforts on your motor shaft.

TECHNICAL DATA

  Ratio*

X-TREME

SQ-RA-060

X-TREME

SQ-RA-075

X-TREME

SQ-RA-100

X-TREME

SQ-RA-140

X-TREME

SQ-RA-180

  L2 option** - 075-R 075-P 100-R 100-P 140-R 140-P 180-R 180-P

Nominal torque

T2n (Nm) (1)

3 29 102 231 384 1,370
4 42 154 244 407 1,888
5 33 120 190 438 1,475
5.5 - 164 260 590 2,005
6 27 81 179 440 1,480
7 30 108 203 465 1,570
8 18 55 164 408 1,468
9 16 47 137 353 1,280
10 18 66 147 308 1,140
12 29 65 102 203 231 283 384 573 1,370
15 29 68 102 210 231 295 384 822 1,370
16 42 86 154 244 244 377 407 764 1,888
20 42 90 154 244 244 393 407 1,096 1,888
21 29 51 102 137 231 269 384 720 1,370
22 - 118 164 260 260 518 590 1,051 2,005
25 33 113 120 190 190 438 438 1,370 1,475
27.5 - 124 164 260 260 540 590 1,507 2,005
28 42 68 154 183 244 359 407 960 1,888
30 27 81 81 179 179 440 440 1,480 1,480
35 33 85 120 190 190 438 438 1,200 1,475
38.5 - 94 164 252 260 494 590 1,320 2,005
40 39 40 113 113 218 218 407 577 1,384
42 27 81 81 179 179 440 440 1,440 1,480
49 30 108 108 203 203 465 465 1,570 1,570
50 33 49 120 141 190 273 438 721 1,475
55 - 54 164 156 260 300 590 794 1,903
60 27 59 81 170 179 327 440 866 1,480
70 30 69 108 198 203 382 465 1,010 1,570
80 18 55 55 164 164 408 408 1,154 1,468
90 16 47 47 137 137 353 353 1,280 1,280
100 18 66 66 147 147 308 308 1,140 1,140

Peak torque

Tmax  (Nm) (2)

3 64 200 460 760 2,740
4 77 190 488 810 3,760
5 55 170 380 870 2,945
5.5 - 235 500 1,100 3,630
6 38 114 327 815 2,700
7 54 161 379 804 2,695
8 37 111 322 765 2,550
9 36 106 305 728 2,450
10 50 157 355 715 2,445
12 64 92 200 242 460 502 760 1,143 2,740
15 64 86 200 206 460 477 760 1,343 2,740
16 77 122 190 322 488 669 810 1,524 3,760
20 77 115 190 275 488 636 810 1,791 3,760
21 64 85 200 212 454 457 760 1,238 2,685
22 - 168 235 443 500 920 1,100 2,095 3,630
25 55 144 170 344 380 795 870 2,238 2,945
27.5 - 158 235 378 500 875 1,100 2,462 3,630
28 77 113 190 282 488 609 810 1,651 3,580
30 38 114 114 327 327 815 815 2,686 2,700
35 55 141 170 353 380 762 870 2,064 2,945
38.5 - 155 235 388 500 838 1,100 2,270 3,630
40 77 109 190 259 488 560 810 1,480 3,320
42 38 114 114 327 327 815 815 2,476 2,700
49 54 161 161 379 379 804 804 2,695 2,695
50 55 136 170 324 380 700 870 1,850 2,945
55 - 150 235 356 500 770 1,100 2,035 3,630
60 38 114 114 327 327 815 815 2,220 2,700
70 54 161 161 379 379 804 804 2,590 2,695
80 37 111 111 322 322 765 765 2,550 2,550
90 36 106 106 305 305 728 728 2,450 2,450
100 50 157 157 353 353 715 715 2,445 2,445
Emergency stop torque (3) 1,5*Tmax
Max angular backlash (arc-min) 1 stage

Standard ≤8

Option ≤6

Standard ≤8 / Option ≤4
2 stages Standard ≤8 / Option ≤6
Nominal input speed (rpm) (4) 4,000 3,100 2,800 2,600 2,000
Max input speed (rpm) (5) 7,500 6,000 5,500 5,000 4,500
Max radial load (N) (6) 2,800 4,150 6,600 9,900 15,400
Max axial load (N) 2,400 3,350 5,650 9,870 15,570
Efficiency (%) (7) 1 stage >94
2 stages >92
Torsional stifness (Nm/min) 4 13 34 54 210
Life (h) (8) 20,000
Min / max temp (°C) -15 / +45
Max temperature of the body (°C) 90
Protection class IP 65
Noise level (dB) (9) <58 <60 <59 <60 <63
Lubrication Sumico MP n°2 grease (lifetime lubrication)
Color Capri blue (RAL 5019)
Input flange Anodized aluminum
  1. Following the ISO 6336-2 standard, for a 20,000 hours life with a 1,25 application factor, at nominal speed with 60°C internal temperature. Applying a lower torque prolounges life significantly.

  2. Following ISO 6336-2 standard, for 2,000h (10% of life) with a 1,4 safety factor, at nominal speed with 60°C internal temperature. Using a torque higher than the nominal torque wears the internal gears.

  3. 1,000 occurences maximum

  4. Speed at which nominal torque can be applied for 20,000 hours

  5. Acceptable for a short duration only

  6. Applied at the middle of the output shaft with a 100 rpm speed.

  7. Measured with a 60°C gearbox using nominal speed and torque. Refer to temperature factors in dedicated section.

  8. Minimum life at nominal speed and torque. Using lower speed and/or torque prolounges life significantly.

  9. At nominal speed, measured at 1m.

* Other ratios are available upon request

** For 2 stages gearboxes, we can have a reduced input (R) or a powerful input (P). The standard is with a reduced input.

DOWNLOAD AREA

Drawings will be available shortly. In the meantime please click here to request the datasheets and 3D drawings.
