Spirit CI

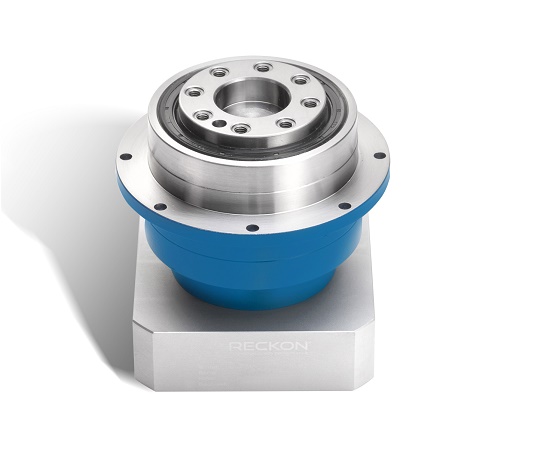

ECONOMICAL planetary gearbox WITH A ROTATING FLANGE

Spirit is a low-backlash planetary gearbox designed for moderate applications with variations of torque.

Acceleration capacity ++
Fast reversals +
Radial load rating ++
Axial load rating +
Stiffness ++
Precision ++
Economy +++++
Suitable to servomotor applications YES
Number of sizes in this line 3 (60 to 120)
Angular backlash <5 arc-min (1 stage) or <8 arc-min (2 stages)
Optional backlash  <3 arc-min (1 stage) or <5 arc-min ( 2 stages)
Available ratios 3 to 100
Motor shaft connection Balanced coupling

Télécharger le pdf

INTERNAL CONSTRUCTION

Spirit is an economical, low-backlash planetary gearbox with a rotating flange.











Moderate radial loads can be accepted thanks to the 2 radial ball bearings supporting the shaft.

The planetary ring gear is monobloc (belongs to the housing), to reinforce stiffness.

The rotating output flange provides a convenient solution for attaching wheels (in low-speed AGV applications for instance).

We recommend this line for applications using application factor Ka<1.3 (refer to the information section for more details about application factors).

















The motor shaft connection is a balanced coupling, so the efforts on your motor bearings are minimal.

Installation is fast and easy thanks to a 1-screw lock to your motor shaft.

The input flange features weight reduction.

The gearbox will be delivered with the adapting flange corresponding to your motor.











spirit LINE FEATURES

MEDIUM ACCELERATION CAPACITY

The planet carrier is supported by 2 radial ball-bearings. This design is adapted to moderate torque variation or acceleration where a particularly low noise level is not required.

LONG-LASTING PRECISION

High-precision planet gears in carburized and quenched steel allow high torque density and strong accelerations, year after year, without loss of precision.

They are supported by large, carburized needles (bearings without cages), in order to maximize torque capacity and lifetime.

The Spirit line features low-backlash (under 5 arc-min backlash for 1-stage gearboxes, and under 8 arc-min backlash for 2 stages gearboxes)

MONOBLOC RING GEAR

The ring gear belongs to the housing, what increases stiffness and allows sharp variations of torque and acceleration. The housing is a monobloc part that includes gear and bearings locations.

SAFETY FOR YOUR MOTOR SHAFT

Spirit features a standard, balanced coupling, to limit vibration on your motor shaft and prolounge your motor's bearings life.

TECHNICAL DATA

  Ratio Spirit-CI-ST-047 Spirit-CI-ST-064 Spirit-CI-ST-090 Spirit-CI-ST-110

Nominal torque

T2n (Nm) (1)

3 - - 46 170
4 11 30 105 205
5 9 24 76 160
7 7 18 51 126
10 5 12 35 85
12 - - 46 170
15 - - 46 170
16 11 30 105 205
20 11 30 105 205
21 - 29 46 170
25 9 24 76 160
28 11 30 105 205
30 - - 46 170
35 9 24 76 160
40 11 30 105 205
50 9 24 76 160
70 7 18 51 126
100 5 12 35 85

Peak torque

Tmax  (Nm) (2)

3 - - 107 338
4 19 54 148 361
5 14 38 99 241
7 13 35 94 230
10 13 33 85 207
12 - - 107 338
15 - - 107 338
16 19 54 148 361
20 19 54 148 361
21 -  - 107 338
25 14 38 99 241
28 19 54 148 361
30 - - 107 338
35 14 38 99 241
40 19 54 148 361
50 14 38 99 241
70 13 35 94 230
100 13 33 85 207
Emergency stop torque (Nm) (3) 1,5*Tmax
Max angular backlash (arc-min) 1 stage standard : ≤5;option : ≤3
2 stages standard : ≤8;option : ≤5
Nominal input speed (rpm) (4) 4 000 3700 3500 2700
Max input speed (rpm) (5) 8 000 6000 6000 5000
Tilting moment (N.m) (6) 9 15 43 110
Max axial load (N) 535 765 1450 2880
Efficiency (%) (7) 1 stage >97
2 stages >94
Torsional stifness (Nm/min) 4 12 27 75
Life (h) (8) 20,000
Min / max ambiant temp (°C) (9) -10 / +45
Max temperature of the body (°C) 90
Protection class IP 54
Noise level (dB) (10) <58 <58 <59 <65
Lubrication Sumico MP n°2 grease (lifetime lubrication)
Coating Color Capri blue (RAL 5019)
Input flange Anodized aluminum



  1. Following the ISO 6336-2 standard, for a 20,000 hours life with a 1,25 application factor, at nominal speed with 60°C internal temperature. Applying a lower torque prolounges life significantly.

  2. Following ISO 6336-2 standard, for 2,000h (10% of life) with a 1,4 safety factor, at nominal speed with 60°C internal temperature. Using a torque higher than the nominal torque wears the internal gears.

  3. 1,000 occurences maximum

  4. Speed at which nominal torque can be applied for 20,000 hours

  5. Acceptable for a short duration only

  6. Applied at the middle of the output shaft with a 100 rpm speed.

  7. Measured with a 60°C gearbox using nominal speed and torque. Refer to temperature factors in dedicated section.

  8. Minimum life at nominal speed and torque. Using lower speed and/or torque prolounges life significantly.

  9. At nominal speed, measured at 1m.

DOWNLOAD AREA

Please find below a selection of gearboxes associated with motor flanges. More drawings will be available shortly. In the meantime please click here to request the datasheets and 3D drawings.

Gearbox model Number of stages Input stage

Motor brand

Motor model

2D

pdf

3D

STEP


SPIRIT-CI-ST-064 1 stage - ratios 4 to 10 Standard Generic NEMA NEMA 34 Résultat de recherche d'images pour "pdf" Résultat de recherche d'images pour "STEP FILE"

SPIRIT-CI-ST-090 1 stage - ratios 4 to 10 Standard     Résultat de recherche d'images pour "pdf" Résultat de recherche d'images pour "STEP FILE"
